Merida BIG.SEVEN 9000 2018

MTB Cross Country
Groupset
Shimano XTR
Wheel size
27,5"
Suspension type
Hardtail
Weight
8,31 kg
Front travel
100mm

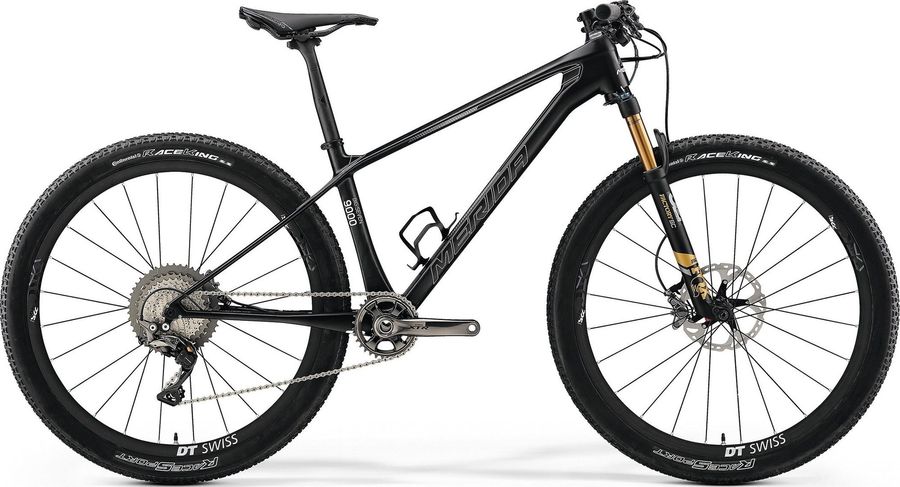

Merida BIG.SEVEN 9000 2018

About the Merida BIG.SEVEN 9000 2018

The Merida BIG.SEVEN 9000 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 8,31 kg.

Features

The Merida BIG.SEVEN 9000 2018 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Prologo Scratch 2 Nack
Headset
FSA NO.47/50CF
Seatpost
MERIDA carbon Team S-Flex in line 30.9mm
Handlebar
MERIDA Team CC 720mm wide flat
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR 32 teeth
Shifter
Shimano XTR rapid fire shifter, 11 speed
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X11
Frameset
Frame
BIG.SEVEN CF5
Front suspension
Fox 32 Float Factory
Wheels
Rims
DT Swiss XRC 1200 wheelset, Boost standard - 15mm front and 12mm rear bolt through axles
Tires
Continental Race King Race Sport 2.2" SL

Geometry

Size XS SM MD LG
a
Seat tube length
342,0
380,0
444,0
483,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
558,0
578,0
598,0
618,0
d
Head tube length
105,0
95,0
100,0
110,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
42,0
33,0
33,0
32,0
g
Trail
91,0
101,0
101,0
102,0
h
Wheelbase
1064,0
1085,0
1106,0
1127,0
i
Chainstay length
416,0
426,0
426,0
426,0
j
Bottom bracket drop
27,0
27,0
27,0
27,0
k
Stack height
560,0
564,0
574,0
588,0
l
Reach
390,0
409,0
426,0
442,0
m
Standover height
660,0
697,0
756,0
788,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
649,0
660,0
681,0
702,0
