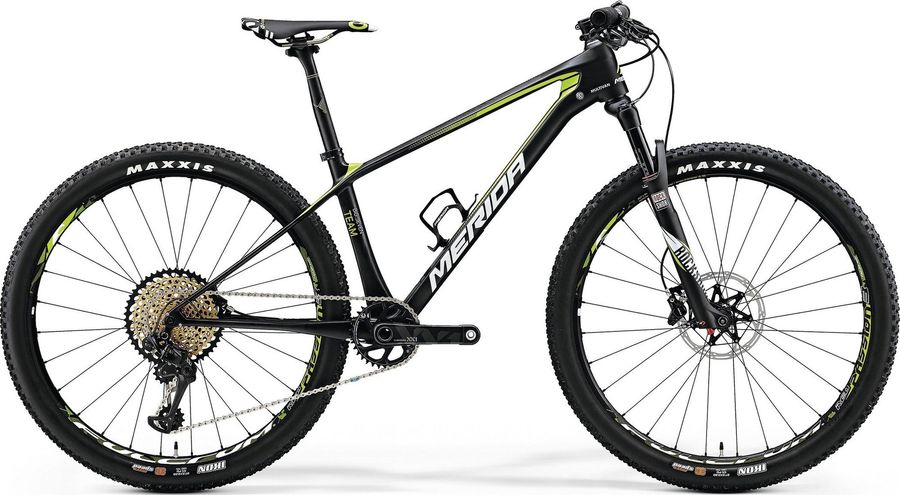

Merida BIG.SEVEN TEAM 2017

MTB Cross Country

Groupset

SRAM XX1

Wheel size

27,5"

Suspension type

Hardtail

Weight

8,34 kg

Front travel

100mm

About the Merida BIG.SEVEN TEAM 2017

The Merida BIG.SEVEN TEAM 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 8,34 kg.

Features

The Merida BIG.SEVEN TEAM 2017 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Saddle	Prologo new Nago Evo X10 TiroX
Headset	Full integrated headset
Seatpost	MERIDA Carbon Team S-Flex SB0 30.9
Handlebar	MERIDA TEAM 720 OS flat
Brake lever	SRAM Level Ultimate
Brakes	SRAM Level Ultimate Hydraulic 317 g
Application MTB Blade material Carbon Bracket disk brake Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Black Anodized, Gold Model DB-LVL-ULT-A1 Name Level Ultimate Orientation Front, Rear Pad type disc Aluminum-backed organic, Steel-backed metal sintered Weight based on Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts) Weight 317

Drivetrain
Crankset	SRAM XX1 34T [PF]
Shifter	SRAM XX1 eagle trigger
Cassette	SRAM XG-1299 Eagle 12s
Cog finish cassete Copper, Gold, Rainbow Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1299-B1 Name XG-1299 Eagle Cassette Speed 12s Technology cassete XG
Chain	SRAM X01 Eagle 239 g
Chain connector PowerLock Chain length links 126 links Color inner link Silver Color outer link Silver Compat speed 12s-Eagle Inner link finish Chrome Plated Model CN-EAGL-X01-A1 Name X01 Eagle Chain Outer link finish Nickel Pin variant Hollow Pin Weight based on 114 links Weight 239
Rear derailleur	SRAM XX1 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar Max tooth 52 Model RD-XX-1-B2 Name XX1 Eagle Rear Derailleur Speed 12s

Frameset
Frame	BIG.SEVEN CF5
Front suspension	RockShox SID World Cup DebonAir
Color Diffusion Black, Gloss Black Damper type Charger 2 fork offset 42mm (27.5"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 203mm, 220mm Minimum rotor size 160mm Model FS-SID-WC-B3 Name SID World Cup Spring DebonAir Travel (mm) 100mm Upper tube type 32mm straight wall aluminum Wheel size 27.5", 29"

Wheels
Rims	Fulcrum Red Passion 3
Tires	Maxxis Ikon 27.5 Exception 2.2 3C
Spokes	attached
Rear hub	attached / DT Plug-in RWS boost
Front hub	attached / DT Plug-in RWS boost
