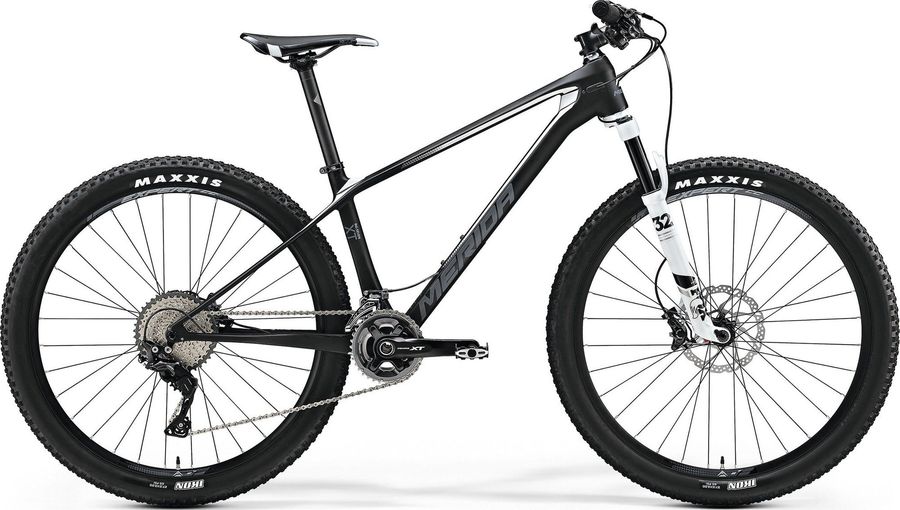

Merida BIG.SEVEN XT 2017

MTB Cross Country

Groupset

Shimano XT

Wheel size

27,5"

Suspension type

Hardtail

Weight

10,68 kg

Front travel

100mm

About the Merida BIG.SEVEN XT 2017

The Merida BIG.SEVEN XT 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,68 kg.

Features

The Merida BIG.SEVEN XT 2017 has 2 features listed below.

Hydraulic disc brakes More info

Remote lockout More info

Specifications

Components
Saddle	Prologo Kappa 3
Headset	Big Conoid A-bearing neck
Seatpost	MERIDA carbon Expert SB0 30.9
Handlebar	MERIDA Expert OS lite 720 R10
Brake lever	Shimano XT
Brakes	Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g) 403 (BL-M8000) Brake hose color kit Black Brake hose kit SM-BH90-SB Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper Model BR-M8000 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option G04S Metal Pad option J04C Metal Pad standard G02A Resin G03A Resin Pad standard J02A Resin J03A Resin Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8000 BL-T8000 Recommended disc brake rotor RT-MT800 SM-RT86

Drivetrain
Crankset	Shimano: XT 36-26 boost PF
Shifter	Shimano XT / Shimano XT 11
Front derailleur	Shimano XT HD double
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Chain	KMC X11

Frameset
Frame	BIG.SEVEN CF3
Front suspension	Fox 32 Float Performance SC

Wheels
Rims	MERIDA Expert CC
Tires	Maxxis Ikon 27.5 2.2 fold
Spokes	Double Butted Black stainless
Rear hub	Shimano Deore 15 cen / Shimano Deore-12 cen boost
Front hub	Shimano Deore 15 cen / Shimano Deore-12 cen boost
