Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,91 kg
Front travel
130mm

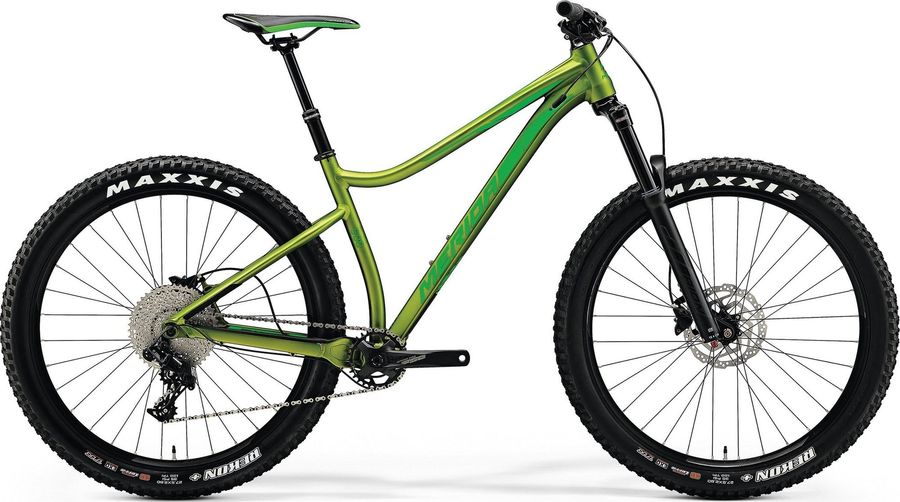

About the Merida BIG.TRAIL 500 2018
The Merida BIG.TRAIL 500 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,91 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
None included
|
|---|
|
Steam
|
Merida Expert TR, 3d forged 6061 aluminium, 35mm long, oversize clamp
|
|---|---|
|
Saddle
|
MERIDA Sport
|
|
Headset
|
MERIDA M2333
|
|
Seatpost
|
MERIDA Expert Dropper 30.9mm
|
|
Handlebar
|
MERIDA Expert TR 35mm rise 780mm wide
|
|
Brake lever
|
Shimano M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA Gamma Pro 1x 30 teeth
|
|---|---|
|
Shifter
|
SRAM NX 11 speed trigger with SRAM MMX clamp
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
Sunrace MX8 11-46T 11-speed
|
|
Chain
|
KMC X11
|
|
Frame
|
BIG.TRAIL
|
|---|---|
|
Front suspension
|
SR Suntour Aion 35
|
|
Rims
|
MERIDA Expert TP with 35mm inner width - tubeless ready
|
|---|---|
|
Tires
|
Maxxis Rekon 27.5+ x 2.8" folding
|
|
Spokes
|
Double Butted Black stainless
|
|
Rear hub
|
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
|
|
Front hub
|
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
601,0
|
623,0
|
646,0
|
669,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
51,0
|
50,0
|
51,0
|
51,0
|
|
g
Trail
|
92,0
|
93,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1130,0
|
1153,0
|
1177,0
|
1201,0
|
|
i
Chainstay length
|
434,5
|
434,5
|
434,5
|
434,5
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
644,0
|
654,0
|
663,0
|
672,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
472,0
|
|
m
Standover height
|
669,0
|
706,0
|
739,0
|
770,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
702,0
|
725,0
|
749,0
|
773,0
|
