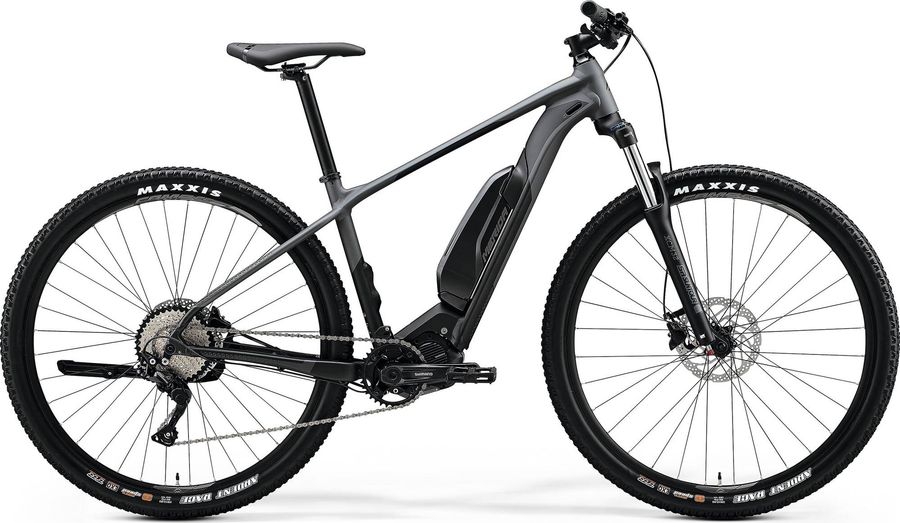

Merida eBIG.NINE 300 SE 2020

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
22,75 kg
Front travel
100mm
Merida eBIG.NINE 300 SE 2020

About the Merida eBIG.NINE 300 SE 2020

The Merida eBIG.NINE 300 SE 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 22,75 kg.

Features

The Merida eBIG.NINE 300 SE 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Remote
Shimano SC-E7000
Components
Saddle
MERIDA Comp CC, V-mount
Battery
Shimano E8010, 504Wh
Headset
MERIDA 2341 Neck
Seatpost
MERIDA Expert, material: aluminium, 30.9mm diameter, 15mm setback
Handlebar
MERIDA Expert CC, material: aluminium, 720mm width, 10mm rise
Discs
Shimano RT30 / Shimano RTEM300
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano CRE70-B, 36 teeth, Shimano FC-E8000
Motor
Shimano E7000, 60Nm
Shifter
Shimano Deore
Bottom bracket
included
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
eBIG.NINE LITE, material: aluminium, 29" wheelsize, 148x12mm axle standard, external, max. 504 Wh
Front suspension
SR Suntour XCM 32
Wheels
Rims
MERIDA Comp CC, 20mm inner width, material: aluminium
Tires
Maxxis Ardent Race
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size MD LG XL
a
Seat tube length
430,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
586,0
606,0
626,0
d
Head tube length
115,0
125,0
135,0
e
Head tube angle
69,5º
69,5º
69,5º
f
Rake
51,0
50,0
51,0
g
Trail
86,0
87,0
86,0
h
Wheelbase
1119,0
1139,0
1160,0
i
Chainstay length
454,0
454,0
454,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
630,0
639,0
648,0
l
Reach
398,0
416,0
433,0
m
Standover height
729,0
773,0
815,0
x
Bottom bracket height
309,0
309,0
309,0
y
Front center
673,0
693,0
714,0
