Merida eBIG.NINE 600 EQ 2019

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

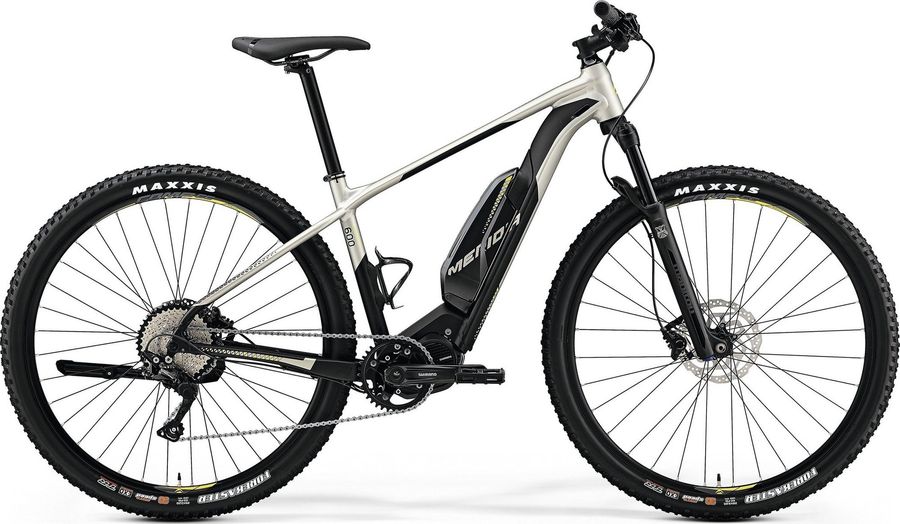

Merida eBIG.NINE 600 EQ 2019

About the Merida eBIG.NINE 600 EQ 2019

The Merida eBIG.NINE 600 EQ 2019 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Merida eBIG.NINE 600 EQ 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Remote
Shimano SC-E6100
Components
Saddle
MERIDA Comfort
Battery
Shimano E8010, 504 Wh
Headset
MERIDA 2341 Neck, 2191022388
Seatpost
MERIDA Expert, 30.9mm diameter, 0mm setback
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Brake lever
attached
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano CRE80-B, 38 teeth
Motor
Shimano E8000, 70Nm
Shifter
no / Shimano Deore
Front derailleur
no
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
eBIG.NINE
Front suspension
SR Suntour Raidon 32 Air
Wheels
Rims
MERIDA Comp CC, 20mm inner width,
Tires
Continental Double Fighter III, 29x2.0", wire
Spokes
Black stainless
Rear hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock
Front hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock

Geometry

Size MD LG XL
a
Seat tube length
430,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
586,0
606,0
626,0
d
Head tube length
115,0
125,0
135,0
e
Head tube angle
69,5º
69,5º
69,5º
f
Rake
51,0
50,0
51,0
g
Trail
86,0
87,0
86,0
h
Wheelbase
1119,0
1139,0
1160,0
i
Chainstay length
454,0
454,0
454,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
630,0
639,0
648,0
l
Reach
398,0
416,0
433,0
m
Standover height
729,0
773,0
815,0
x
Bottom bracket height
309,0
309,0
309,0
y
Front center
673,0
693,0
714,0
