BikeWise

Merida eBIG.NINE/SEVEN 900E 2018

E-Bike
MTB Cross Country
Groupset
Shimano XT Di2
Wheel size
27,5" / 29"
Suspension type
Hardtail

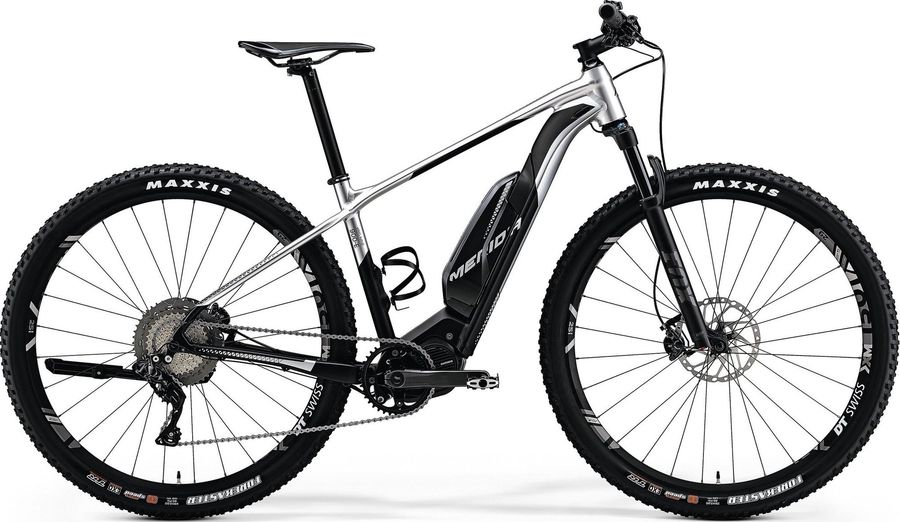

Merida eBIG.NINE/SEVEN 900E 2018

About the Merida eBIG.NINE/SEVEN 900E 2018

The Merida eBIG.NINE/SEVEN 900E 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT Di2 drivetrain. Its features include hydraulic disc brakes.

Features

The Merida eBIG.NINE/SEVEN 900E 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano SC-E8000
Components
Saddle
MERIDA Expert
Battery
Shimano E8010 500Wh
Headset
MERIDA 2333 Neck
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Brake lever
attached
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano CRE80-B 38
Motor
Shimano [E8000]
Shifter
Shift Switch XT Di2
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Chain
KMC X11
Frameset
Frame
eBIG.NINE/SEVEN E8000
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
XM 1501 Spline ONE 25 boost centerlock wheelset
Tires
Maxxis Forekaster

Geometry

Size SM MD MD MD MD LG XL
a
Seat tube length
380,0
430,0
430,0
430,0
430,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
567,0
587,0
587,0
587,0
587,0
607,0
627,0
d
Head tube length
125,0
135,0
135,0
115,0
115,0
125,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
69,5º
69,5º
69,5º
69,5º
f
Rake
42,0
42,0
42,0
51,0
51,0
50,0
51,0
g
Trail
98,0
98,0
106,0
78,0
86,0
87,0
86,0
h
Wheelbase
1101,0
1122,0
1122,0
1120,0
1120,0
1140,0
1161,0
i
Chainstay length
435,0
435,0
435,0
455,0
455,0
455,0
455,0
j
Bottom bracket drop
27,0
27,0
27,0
65,0
65,0
65,0
65,0
k
Stack height
576,0
585,0
585,0
631,0
631,0
640,0
649,0
l
Reach
396,0
413,0
413,0
399,0
399,0
417,0
434,0
m
Standover height
707,3
746,0
746,0
730,3
730,3
774,0
816,0
x
Bottom bracket height
328,0
328,0
347,0
290,0
309,0
309,0
309,0
y
Front center
667,0
688,0
688,0
673,0
673,0
693,0
714,0
