Merida eBIG.NINE/SEVEN XT-EDITION 2018

E-Bike
MTB Cross Country
Groupset
Shimano XT
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm
Merida eBIG.NINE/SEVEN XT-EDITION 2018

About the Merida eBIG.NINE/SEVEN XT-EDITION 2018

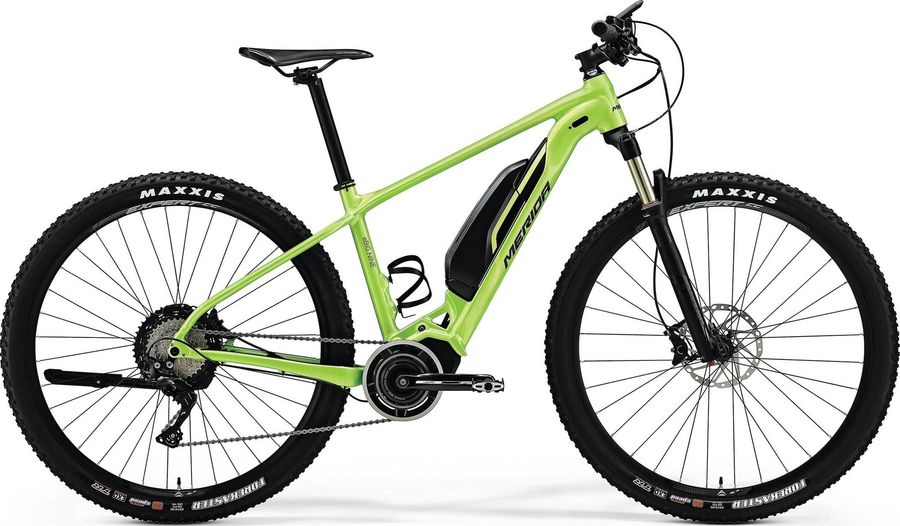

The Merida eBIG.NINE/SEVEN XT-EDITION 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes.

Features

The Merida eBIG.NINE/SEVEN XT-EDITION 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano SC-E6010
Components
Saddle
MERIDA Sport 5
Battery
Shimano E8010 500Wh
Headset
FSA NO.55EP neck
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Brake lever
attached
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE60 38 DCG
Motor
Shimano [E6002KL]
Shifter
Shimano XT 11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
eBIG.NINE/SEVEN
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
MERIDA Expert CC
Tires
Maxxis Forekaster
Spokes
Black stainless
Rear hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard rear
Front hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard rear

Geometry

Size SM MD MD MD MD LG XL
a
Seat tube length
380,0
430,0
430,0
430,0
430,0
480,0
530,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
567,0
587,0
587,0
587,0
587,0
607,0
627,0
d
Head tube length
125,0
135,0
135,0
115,0
115,0
125,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
69,5º
69,5º
69,5º
69,5º
f
Rake
44,0
44,0
44,0
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
104,0
78,0
86,0
86,0
86,0
h
Wheelbase
1120,0
1141,0
1141,0
1137,0
1137,0
1158,0
1178,0
i
Chainstay length
452,0
452,0
452,0
472,0
472,0
472,0
472,0
j
Bottom bracket drop
27,0
27,0
27,0
65,0
65,0
65,0
65,0
k
Stack height
575,0
584,0
584,0
631,0
631,0
640,0
649,0
l
Reach
396,0
413,0
413,0
399,0
399,0
417,0
434,0
m
Standover height
714,0
753,0
753,0
729,0
729,0
774,0
815,0
x
Bottom bracket height
328,0
328,0
347,0
290,0
309,0
309,0
309,0
y
Front center
669,0
690,0
690,0
673,0
673,0
694,0
713,0
