Merida eBIG.SEVEN 300 SE 2021

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
22,59 kg
Front travel
100mm

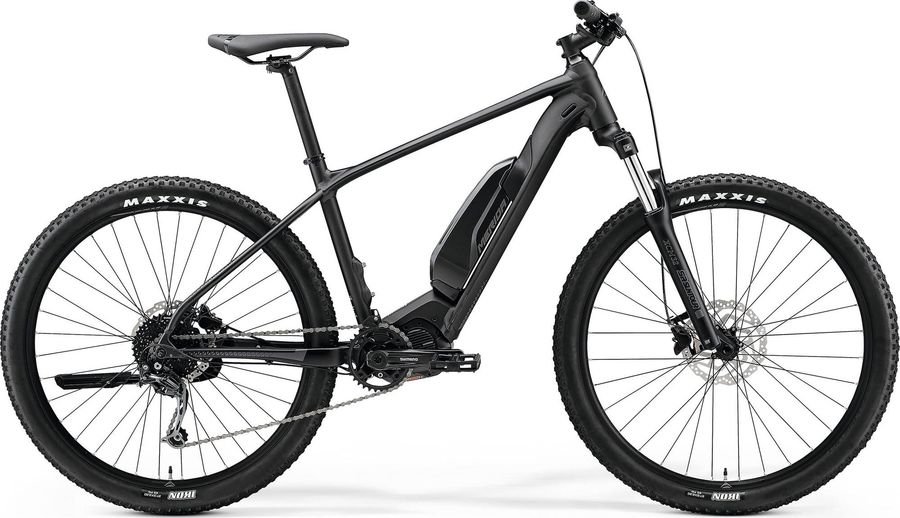

Merida eBIG.SEVEN 300 SE 2021

About the Merida eBIG.SEVEN 300 SE 2021

The Merida eBIG.SEVEN 300 SE 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 9 gears (1x9). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,59 kg.

Features

The Merida eBIG.SEVEN 300 SE 2021 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Remote
Shimano SC-E5000
Components
Steam
MERIDA EXPERT CC, 31,8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M
Saddle
MERIDA COMP CC, V-mount
Battery
Shimano E8010 504Wh
Headset
Merida 2341 Neck
Seatpost
MERIDA EXPERT, 30.9mm diameter, 15mm setback
Handlebar
MERIDA EXPERT CC, 720mm width, 10mm rise
Discs
Shimano RT10, 180 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Motor
Shimano E7000, 60Nm
Shifter
Shimano Alivio M3100 9
Bottom bracket
included
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC HG53
Frameset
Frame
eBIG.SEVEN LITE, material: aluminium, 27.5x2.25" max. wheelsize, 148x12mm axle standard, external, max. 504 Wh
Front suspension
SR Suntour XCM 32
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 27.5x2.2", kevlar bead
Rear hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Geometry

Size XS SM MD
a
Seat tube length
330,0
380,0
430,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
568,0
568,0
588,0
d
Head tube length
115,0
125,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
h
Wheelbase
1118,0
1102,0
1123,0
i
Chainstay length
453,0
436,0
436,0
j
Bottom bracket drop
27,0
27,0
27,0
k
Stack height
567,0
577,0
586,0
l
Reach
399,0
397,0
414,0
m
Standover height
671,0
708,0
747,0
x
Bottom bracket height
328,0
328,0
328,0
y
Front center
666,0
667,0
688,0
