Merida eBIG.SEVEN 900 2019

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
18,77 kg
Front travel
100mm

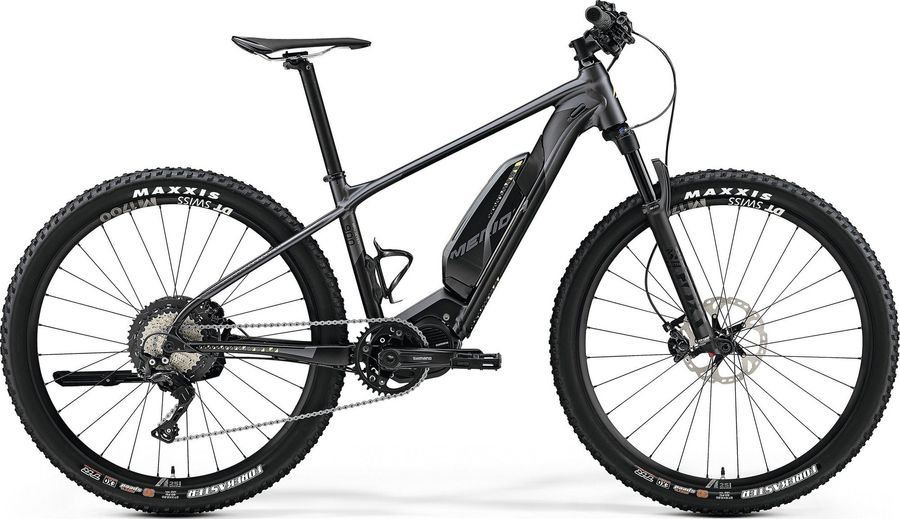

Merida eBIG.SEVEN 900 2019

About the Merida eBIG.SEVEN 900 2019

The Merida eBIG.SEVEN 900 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 18,77 kg.

Features

The Merida eBIG.SEVEN 900 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
VP VPE-537
Remote
Shimano SC-E8000
Components
Steam
Merida Expert CC, 31.8mm diameter, 6° stem angle
Saddle
MERIDA Expert CC
Battery
Shimano E8010, 504 Wh
Headset
MERIDA M2333 neck, 2191025648
Seatpost
MERIDA Expert, 30.9mm diameter, 15mm setback
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Brake lever
attached
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano CRE80-B, 38 teeth
Motor
Shimano E8000, 70Nm
Shifter
no / Shimano XT 11
Front derailleur
no
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
eBIG.SEVEN
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
DT Swiss Spline M1700, 110x15mm width front hub, 148x12mm width rear hub, 35mm inner width, Centerlock
Tires
Maxxis Forekaster, 27.5x2.2", fold
Spokes
attached
Rear hub
DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear
Front hub
DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear

Geometry

Size SM MD
a
Seat tube length
380,0
430,0
b
Seat tube angle
73,5º
73,5º
c
Top tube length
567,0
587,0
d
Head tube length
125,0
135,0
e
Head tube angle
68,0º
68,0º
f
Rake
42,0
42,0
g
Trail
98,0
98,0
h
Wheelbase
1101,0
1122,0
i
Chainstay length
435,0
435,0
j
Bottom bracket drop
27,0
27,0
k
Stack height
576,0
585,0
l
Reach
396,0
413,0
m
Standover height
707,0
746,0
x
Bottom bracket height
328,0
328,0
y
Front center
667,0
688,0
