Merida eBIG.SEVEN LIMITED 2019

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
18,83 kg
Front travel
100mm

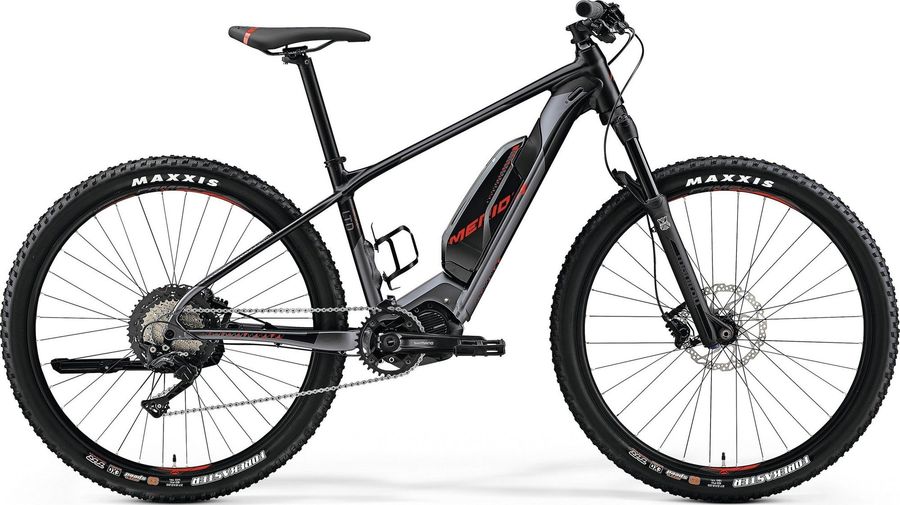

Merida eBIG.SEVEN LIMITED 2019

About the Merida eBIG.SEVEN LIMITED 2019

The Merida eBIG.SEVEN LIMITED 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 18,83 kg.

Features

The Merida eBIG.SEVEN LIMITED 2019 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
VP VPE-537
Remote
Shimano SC-E7000
Components
Steam
Merida Expert CC, 31.8mm diameter, 6° stem angle
Saddle
MERIDA Comp CC
Battery
Shimano E8010, 504 Wh
Headset
MERIDA 2341 Neck, 2191022388
Seatpost
MERIDA Expert, 30.9mm diameter, 15mm setback
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Brake lever
attached
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano CRE70-B, 34 teeth
Motor
Shimano E7000, 60Nm
Shifter
no / Shimano SLX 11
Front derailleur
no
Chain
KMC e11 Sport
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
eBIG.SEVEN
Front suspension
Manitou Machete
Wheels
Rims
MERIDA Comp CC, 20mm inner width,
Tires
Maxxis Forekaster, 27.5x2.2", fold
Spokes
Black stainless
Rear hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock
Front hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock

Geometry

Size SM MD
a
Seat tube length
380,0
430,0
b
Seat tube angle
73,5º
73,5º
c
Top tube length
567,0
587,0
d
Head tube length
125,0
135,0
e
Head tube angle
68,0º
68,0º
f
Rake
42,0
42,0
g
Trail
98,0
98,0
h
Wheelbase
1101,0
1122,0
i
Chainstay length
435,0
435,0
j
Bottom bracket drop
27,0
27,0
k
Stack height
576,0
585,0
l
Reach
396,0
413,0
m
Standover height
707,0
746,0
x
Bottom bracket height
328,0
328,0
y
Front center
667,0
688,0
