Merida eBIG.TOUR XT-EDITION 2017

E-Bike
MTB Cross Country
Groupset
Shimano XT
Wheel size
700c
Suspension type
Hardtail

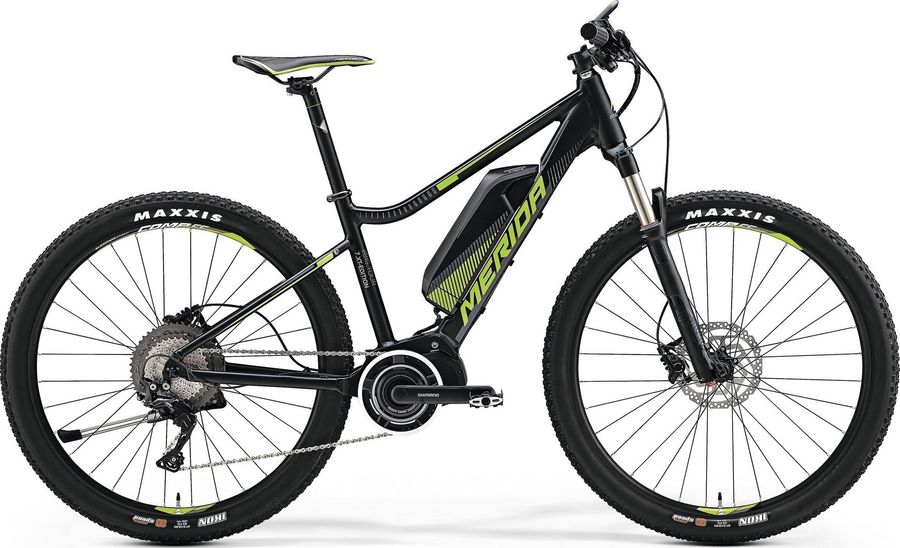

Merida eBIG.TOUR XT-EDITION 2017

About the Merida eBIG.TOUR XT-EDITION 2017

The Merida eBIG.TOUR XT-EDITION 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes.

Features

The Merida eBIG.TOUR XT-EDITION 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano Cyclo display SC-E6010
Components
Saddle
MERIDA Sport 5
Battery
Shimano E6010 418Wh
Seatpost
MERIDA Expert H SB15 30.9
Handlebar
MERIDA EXPERT OS 720 R10
Brake lever
attached
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano 38 DCG
Motor
Shimano [E6001]
Shifter
Shimano XT 11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
eBIG.TOUR (STePS)
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
MERIDA Big Comp CC
Tires
Maxxis Ikon 2.2 fold + EXO Protection
Spokes
Black stainless
Rear hub
Shimano Deore 15 cen / Shimano Deore cen
Front hub
Shimano Deore 15 cen / Shimano Deore cen

Geometry

Size SM MD MD MD MD LG XL
a
Seat tube length
410,0
440,0
440,0
440,0
440,0
480,0
520,0
b
Seat tube angle
72,5º
72,5º
72,5º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
553,0
573,0
573,0
573,0
573,0
593,0
613,0
d
Head tube length
135,0
145,0
145,0
135,0
135,0
145,0
155,0
e
Head tube angle
69,0º
69,0º
69,0º
69,5º
69,5º
69,5º
69,5º
f
Rake
40,0
42,0
42,0
51,0
51,0
46,0
47,0
g
Trail
101,0
99,0
99,0
86,0
86,0
91,0
90,0
h
Wheelbase
1074,0
1095,0
1095,0
1105,0
1105,0
1126,0
1147,0
i
Chainstay length
443,0
443,0
443,0
463,0
463,0
463,0
463,0
j
Bottom bracket drop
50,0
50,0
50,0
70,0
70,0
70,0
70,0
k
Stack height
613,0
618,0
618,0
647,0
647,0
657,0
666,0
l
Reach
365,0
382,0
382,0
367,0
367,0
390,0
407,0
m
Standover height
676,0
694,0
694,0
696,0
696,0
727,0
758,0
x
Bottom bracket height
-
-
-
-
-
-
-
y
Front center
636,0
657,0
657,0
651,0
651,0
672,0
693,0
