Merida eBIG.TRAIL 500 2018

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
20,9 kg
Front travel
130mm

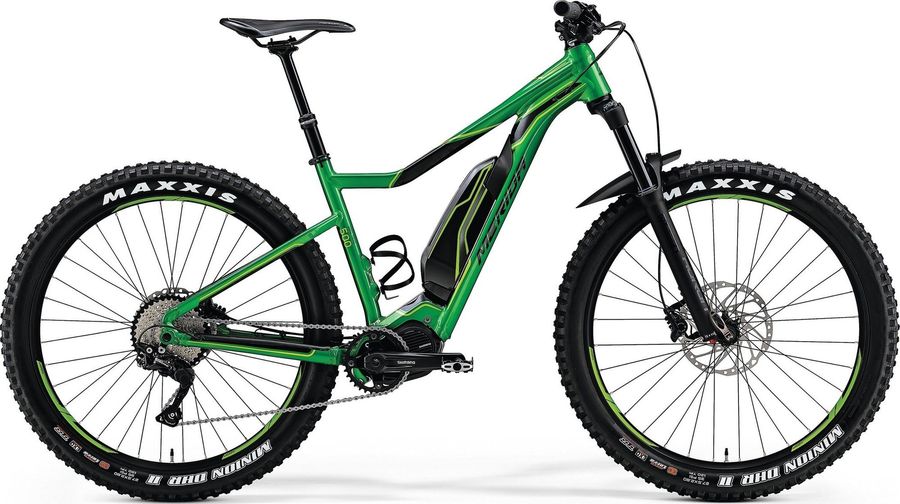

Merida eBIG.TRAIL 500 2018

About the Merida eBIG.TRAIL 500 2018

The Merida eBIG.TRAIL 500 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 20,9 kg.

Features

The Merida eBIG.TRAIL 500 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP Components, VPE-537
Remote
Shimano SC-E8000
Components
Steam
Merida Expert SS, 45mm length
Saddle
MERIDA Sport 5
Battery
Shimano E8010 500Wh
Headset
FSA NO.55EP neck
Seatpost
MERIDA Expert Dropper 30.9mm
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Brake lever
attached
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano CRE80-B 34
Motor
Shimano [E8000]
Shifter
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG500-10
Chain
KMC X11
Frameset
Frame
eBIG.TRAIL
Front suspension
SR Suntour Auron 35 RC2
Wheels
Rims
MERIDA EXPERT TP
Tires
Maxxis Rekon 27.5"+ 2.8" folding
Spokes
Black stainless
Rear hub
Shimano Deore, Boost standard, centrelock
Front hub
Shimano Deore, Boost standard, centrelock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
582,0
604,0
627,0
649,0
d
Head tube length
105,0
115,0
125,0
135,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1130,0
1154,0
1177,0
1201,0
i
Chainstay length
434,5
434,5
434,5
434,5
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
637,0
647,0
656,0
665,0
l
Reach
405,0
425,0
445,0
465,0
m
Standover height
650,0
682,0
705,0
736,0
x
Bottom bracket height
295,0
295,0
295,0
295,0
y
Front center
702,0
726,0
749,0
773,0
