Merida eONE-FORTY 4000 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,43 kg
Front travel
140mm
Rear travel
133mm

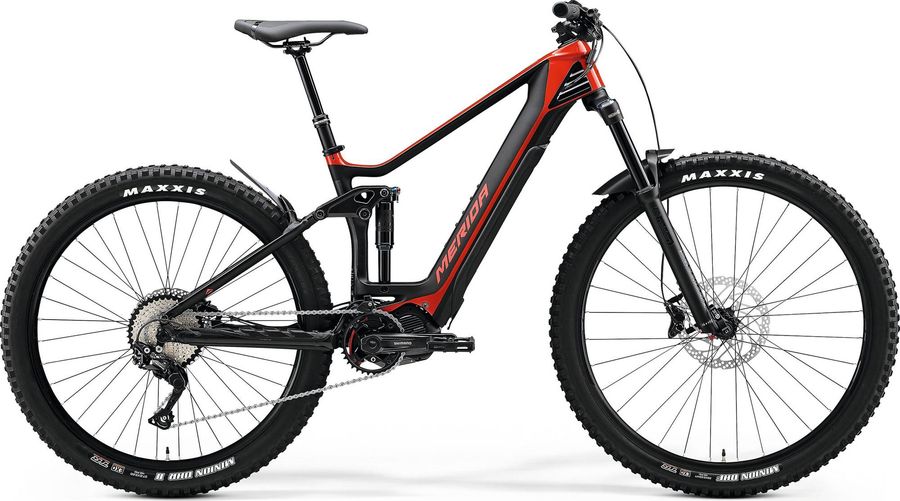

Merida eONE-FORTY 4000 2020

About the Merida eONE-FORTY 4000 2020

The Merida eONE-FORTY 4000 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 22,43 kg.

Features

The Merida eONE-FORTY 4000 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Remote
w/o display
Components
Saddle
MERIDA Comp CC, V-mount
Battery
Shimano E8035, 504Wh
Headset
MERIDA 1901
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - M/L/XL/XXL 125mm travel seatpost
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Discs
Shimano RT30 / Shimano RTEM300
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Motor
Shimano E7000, 60Nm
Shifter
Shimano Deore
Bottom bracket
included
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC 10v
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
eONE-FORTY CFA, material: carbon, 133mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Front suspension
SR Suntour Raidon 34
Rear suspension
SR Suntour Edge LOR8
Wheels
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium
Tires
Maxxis DHF / Maxxis DHR II
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size SM MD LG XL XXL
a
Seat tube length
405,0
420,0
440,0
470,0
500,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
76,5º
c
Top tube length
565,5
586,5
607,5
631,0
654,5
d
Head tube length
110,0
115,0
120,0
135,0
150,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
47,0
47,0
47,0
48,0
48,0
g
Trail
103,0
103,0
103,0
102,0
102,0
h
Wheelbase
1165,0
1187,0
1209,0
1235,5
1261,5
i
Chainstay length
444,5
444,5
444,5
444,5
444,5
j
Bottom bracket drop
24,0
24,0
24,0
24,0
24,0
k
Stack height
627,0
631,5
636,0
649,5
663,0
l
Reach
415,0
434,5
454,5
474,5
494,5
m
Standover height
-
-
-
-
-
x
Bottom bracket height
331,0
331,0
331,0
331,0
331,0
y
Front center
722,0
744,0
766,0
792,0
818,0
