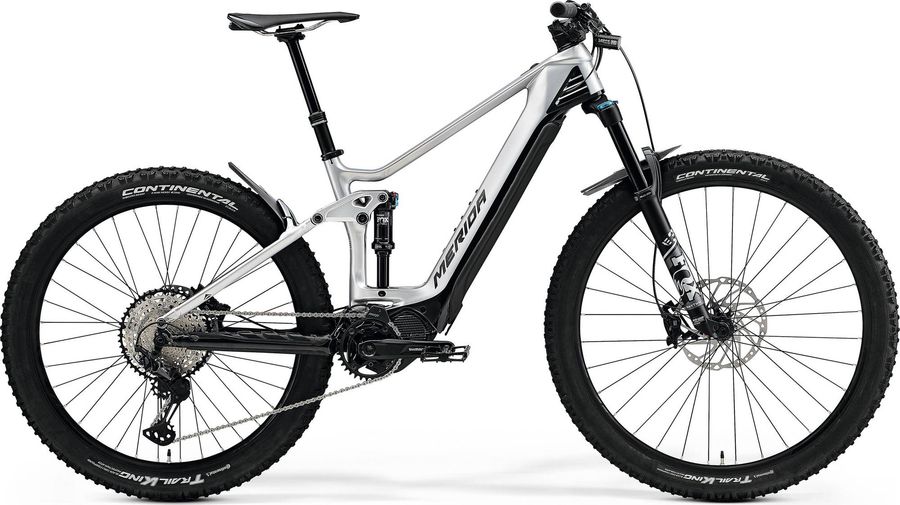

Merida eONE-FORTY 8000 2021
The Merida eONE-FORTY 8000 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,37 kg
Front travel
140mm
Rear travel
133mm
About the Merida eONE-FORTY 8000 2021
The Merida eONE-FORTY 8000 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,37 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Shimano SC-E7000
|
|---|
|
Steam
|
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm all sizes
|
|---|---|
|
Saddle
|
MERIDA EXPERT CC, V-mount
|
|
Battery
|
Shimano E8036 630Wh / E8035 504Wh S
|
|
Headset
|
MERIDA-8152
|
|
Seatpost
|
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M/L 150mm travel seatpost - XL/XXL 170mm travel seatpost
|
|
Handlebar
|
MERIDA EXPERT eTR, 780mm width, 20mm rise
|
|
Discs
|
Shimano RT64 / Shimano RTEM600, 203 mm
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano CRE80-12-B, 34 teeth, Shimano FCEM600
|
|---|---|
|
Motor
|
Shimano EP8, 85Nm
|
|
Shifter
|
Shimano SL -MT500-IL / Shimano XT M8100 12
|
|
Bottom bracket
|
included
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Frame
|
eONE-FORTY CFA II, material: carbon, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
|
|---|---|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
|
|---|---|
|
Tires
|
Trail King, 29x2.4 ", fold, BlackChili, ProTection Apex, TR
|
|
Rear hub
|
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
|
|
Front hub
|
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
420,0
|
440,0
|
470,0
|
500,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
566,0
|
587,0
|
608,0
|
631,0
|
655,0
|
|
d
Head tube length
|
110,0
|
115,0
|
120,0
|
135,0
|
150,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
47,0
|
47,0
|
47,0
|
48,0
|
48,0
|
|
g
Trail
|
103,0
|
103,0
|
103,0
|
102,0
|
102,0
|
|
h
Wheelbase
|
1165,0
|
1187,0
|
1209,0
|
1235,5
|
1261,5
|
|
i
Chainstay length
|
444,5
|
444,5
|
444,5
|
444,5
|
444,5
|
|
j
Bottom bracket drop
|
24,0
|
24,0
|
24,0
|
24,0
|
24,0
|
|
k
Stack height
|
627,0
|
631,5
|
636,0
|
649,5
|
663,0
|
|
l
Reach
|
415,0
|
434,5
|
454,5
|
474,5
|
494,5
|
|
m
Standover height
|
741,0
|
736,0
|
732,0
|
739,0
|
753,0
|
|
x
Bottom bracket height
|
331,0
|
331,0
|
331,0
|
331,0
|
331,0
|
|
y
Front center
|
722,0
|
744,0
|
766,0
|
792,0
|
818,0
|
