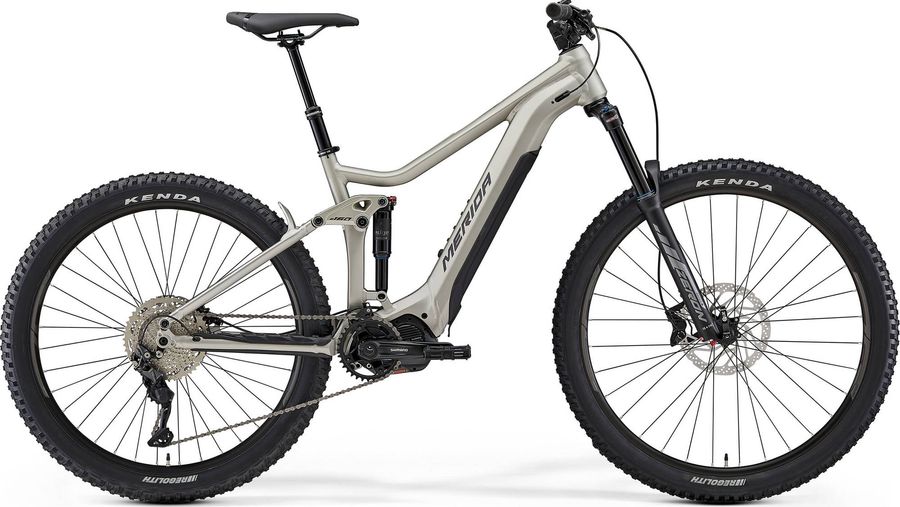

Merida eONE-SIXTY 300S 2021
The Merida eONE-SIXTY 300S 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
About the Merida eONE-SIXTY 300S 2021
The Merida eONE-SIXTY 300S 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Shimano SC-E5000
|
|---|
|
Steam
|
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes
|
|---|---|
|
Saddle
|
MERIDA COMP CC, V-mount
|
|
Battery
|
Shimano E8035 504Wh
|
|
Headset
|
MERIDA-8152
|
|
Seatpost
|
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost
|
|
Handlebar
|
MERIDA EXPERT eTR, 780mm width, 20mm rise
|
|
Discs
|
Shimano RT30 / Shimano RTEM300, 203 mm, 180 mm
|
|
Brakes
|
Shimano BR-MT410
Hydraulic disc brake
2 piston
|
|
SM-RT54* SM-RT56* |
|
|
Crankset
|
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
|
|---|---|
|
Motor
|
Shimano E7000, 60Nm
|
|
Shifter
|
Shimano SL -MT500-IL / Shimano Deore M4100-RC1 clamp band 10
|
|
Bottom bracket
|
included
|
|
Chain
|
Shimano CN-HG54
273 g
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
eONE-SIXTY Lite II, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 504 Wh
|
|---|---|
|
Rear suspension
|
SR Suntour Edge R
|
|
Front suspension
|
SR Suntour Zeron 35
|
|
Rims
|
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
|
|---|---|
|
Tires
|
Kenda Regolith, 29x2.4", wire
|
|
Rear hub
|
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
|
|
Front hub
|
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
440,0
|
470,0
|
500,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
587,0
|
608,0
|
632,0
|
655,0
|
|
d
Head tube length
|
115,0
|
120,0
|
135,0
|
150,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
|
h
Wheelbase
|
1193,0
|
1215,0
|
1241,5
|
1267,5
|
|
i
Chainstay length
|
442,5
|
442,5
|
442,5
|
442,5
|
|
j
Bottom bracket drop
|
17,5
|
17,5
|
17,5
|
17,5
|
|
k
Stack height
|
636,0
|
641,0
|
655,0
|
668,0
|
|
l
Reach
|
423,0
|
443,0
|
463,0
|
483,0
|
|
m
Standover height
|
739,0
|
737,0
|
758,0
|
780,0
|
|
x
Bottom bracket height
|
338,0
|
338,0
|
338,0
|
338,0
|
|
y
Front center
|
751,0
|
773,0
|
800,0
|
826,0
|
