Merida eONE-SIXTY 5000 2020

E-Bike
MTB Enduro
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,89 kg
Front travel
160mm
Rear travel
150mm

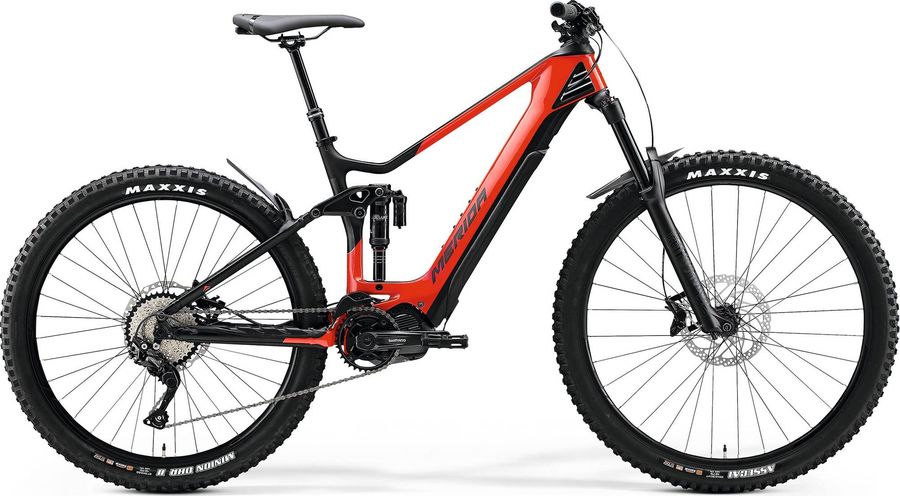

Merida eONE-SIXTY 5000 2020

About the Merida eONE-SIXTY 5000 2020

The Merida eONE-SIXTY 5000 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,89 kg.

Features

The Merida eONE-SIXTY 5000 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Shimano SC-E7000
Components
Saddle
MERIDA Comp CC, V-mount, incl. MERIDA minitool
Battery
ABUS lock for Shimano integrated battery, no key use allen key
Headset
MERIDA 1901
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 125mm travel seatpost
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Motor
Shimano E7000, 60Nm
Shifter
Shimano Deore
Bottom bracket
included
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Assegai, 29x2.5 ", fold, 3C EXO+
Spokes
Black stainless
Rear hub
Shimano Deore, 148x12mm width rear hub, 36 spoke holes, Centerlock
Front hub
Shimano Deore, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size XS SM MD LG XL
a
Seat tube length
405,0
420,0
440,0
470,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
567,5
588,5
610,0
633,5
657,0
d
Head tube length
110,0
115,0
120,0
135,0
150,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
111,0
111,0
111,0
111,0
111,0
h
Wheelbase
1173,0
1195,0
1217,0
1243,5
1269,5
i
Chainstay length
444,5
444,5
444,5
444,5
444,5
j
Bottom bracket drop
17,5
17,5
17,5
17,5
17,5
k
Stack height
633,5
638,0
642,5
656,5
670,0
l
Reach
405,0
425,0
445,0
465,0
485,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
338,0
338,0
338,0
338,0
338,0
y
Front center
729,0
751,0
773,0
800,0
826,0
