BikeWise

Merida eONE-SIXTY 800 2017

E-Bike
MTB Enduro
Groupset
Shimano XT
Wheel size
27,5"
Suspension type
Full suspension
Merida eONE-SIXTY 800 2017

About the Merida eONE-SIXTY 800 2017

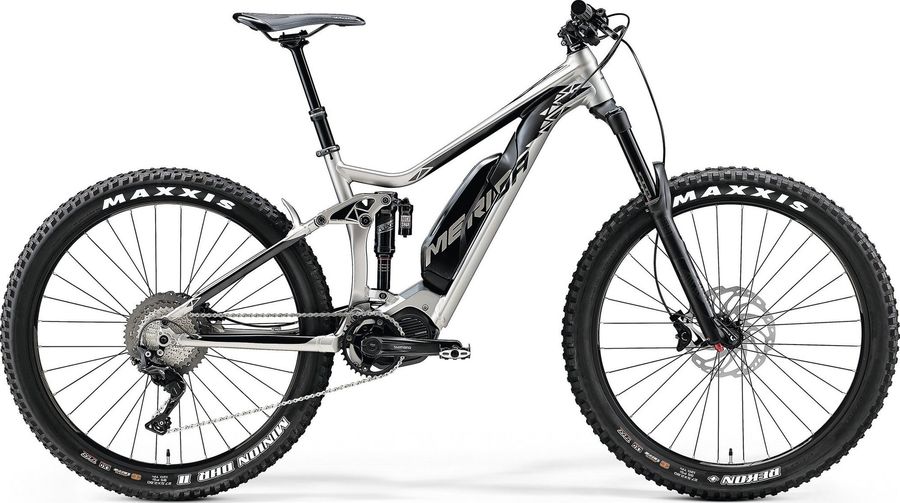

The Merida eONE-SIXTY 800 2017 is a Full suspension Enduro Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes.

Features

The Merida eONE-SIXTY 800 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano Cyclo display SC-E8000
Components
Saddle
MERIDA Sport 5
Battery
Shimano E8010 500Wh
Seatpost
MERIDA EXPERT Dropper 30.9
Handlebar
MERIDA EXPERT 35 760
Brake lever
attached
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Motor
Shimano DU-E8000
Shifter
Shimano SLX 11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
eONE-SIXTY (STePS)
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA Expert TP
Tires
Maxxis DHR 2 27.5+ 2.8 fold
Spokes
Black stainless
Rear hub
Shimano Deore boost cen
Front hub
Shimano Deore boost cen

Geometry

Size SM MD LG
a
Seat tube length
410,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
576,0
601,0
627,0
d
Head tube length
100,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
g
Trail
99,0
99,0
99,0
h
Wheelbase
1167,0
1195,0
1223,0
i
Chainstay length
432,5
432,5
432,5
j
Bottom bracket drop
12,5
12,5
12,5
k
Stack height
601,0
619,0
637,0
l
Reach
413,0
433,0
453,0
m
Standover height
715,0
718,0
748,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
735,0
763,0
791,0
