Merida eONE-SIXTY 800 2018

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,25 kg
Front travel
160mm
Rear travel
160mm

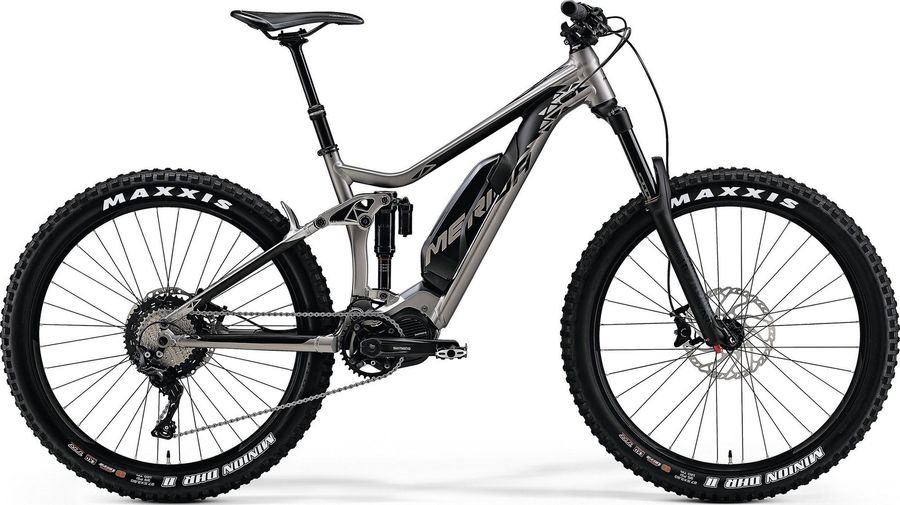

Merida eONE-SIXTY 800 2018

About the Merida eONE-SIXTY 800 2018

The Merida eONE-SIXTY 800 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 22,25 kg.

Features

The Merida eONE-SIXTY 800 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP Components, VPE-537
Remote
Shimano SC-E8000
Components
Steam
Merida Expert SS, 45mm length
Saddle
MERIDA Sport 5
Battery
Shimano E8010 500Wh
Headset
FSA NO.57/55E neck
Seatpost
MERIDA EXPERT Dropper 30.9mm
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Brake lever
attached
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE80-B 34
Motor
Shimano [E8000]
Shifter
Shimano SLX 11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
eONE-SIXTY
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA EXPERT TP
Tires
Maxxis DHR II 27.5" x 2.8"
Spokes
Black stainless
Rear hub
15mm front hub, Shimano Deore, Boost standard centrelock rear
Front hub
15mm front hub, Shimano Deore, Boost standard centrelock rear

Geometry

Size SM MD LG
a
Seat tube length
410,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
576,0
601,0
627,0
d
Head tube length
100,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
g
Trail
99,0
99,0
99,0
h
Wheelbase
1167,0
1195,0
1223,0
i
Chainstay length
432,5
432,5
432,5
j
Bottom bracket drop
12,5
12,5
12,5
k
Stack height
601,0
619,0
637,0
l
Reach
413,0
433,0
453,0
m
Standover height
717,0
720,0
750,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
735,0
763,0
791,0
