Merida eONE-SIXTY 800 SE 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,17 kg
Front travel
160mm
Rear travel
160mm

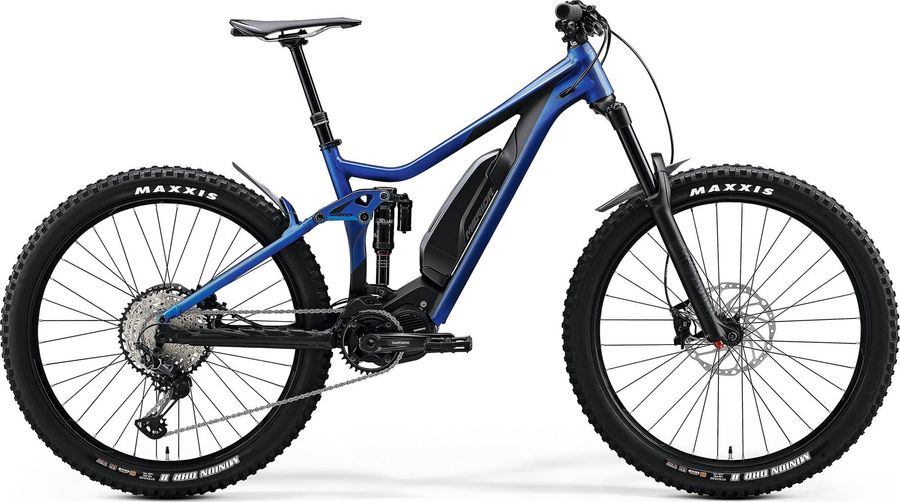

Merida eONE-SIXTY 800 SE 2020

About the Merida eONE-SIXTY 800 SE 2020

The Merida eONE-SIXTY 800 SE 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,17 kg.

Features

The Merida eONE-SIXTY 800 SE 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Shimano SC-E7000
Components
Saddle
MERIDA Expert CC, V-mount, incl. MERIDA minitool
Battery
Abus key
Headset
FSA NO.57/55E neck
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L 150mm travel seatpost - XL 170mm travel seatpost
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE80-12-B, 34 teeth, Shimano FC-E8000
Motor
Shimano E8000, 70Nm
Shifter
Shimano SL -MT800-IL
Bottom bracket
included
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
eONE-SIXTY LITE, material: aluminium, 160mm suspension travel, 27.5" wheelsize, 148x12mm axle standard, external, max. 504 Wh
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
MERIDA EXPERT TP, 38mm inner width, material: aluminium, Tubeless ready (tubeless tape and valved not included)
Tires
Maxxis DHR II, 27.5x2.6 ", fold, 3C EXO TR
Spokes
Black stainless
Rear hub
Shimano SLX, 148x12mm width rear hub, 36 spoke holes, Centerlock
Front hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
430,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
576,0
601,0
627,0
651,0
d
Head tube length
100,0
120,0
140,0
160,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
99,0
99,0
99,0
99,0
h
Wheelbase
1167,0
1195,0
1223,0
1251,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
12,5
12,5
12,5
12,5
k
Stack height
601,0
619,0
637,0
656,0
l
Reach
413,0
433,0
453,0
473,0
m
Standover height
717,0
720,0
750,0
782,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
735,0
763,0
791,0
819,0
