BikeWise

Merida eOne-Sixty 900-E 2019

E-Bike
MTB Enduro
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,82 kg
Front travel
160mm
Rear travel
160mm

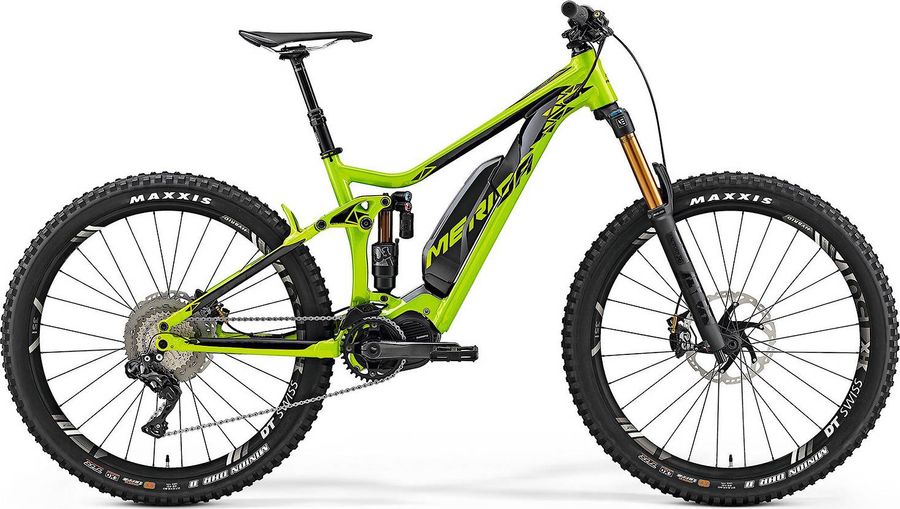

Merida eOne-Sixty 900-E 2019

About the Merida eOne-Sixty 900-E 2019

The Merida eOne-Sixty 900-E 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 21,82 kg.

Features

The Merida eOne-Sixty 900-E 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
VP VPE-537
Components
Steam
Merida Expert eTR, 35mm diameter, 0° stem angle
Saddle
Merida Expert CC
Battery
Shimano E8010 with Abus key lock
Headset
FSA No. 57/55E Neck
Seatpost
RockShox Reverb, 100mm travel (S), 150mm travel (M, L, XL)
Handlebar
Merida Expert eTR, 20mm rise, 780mm width
Brake lever
Shimano Saint
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
Shimano E8050, hollow, 170mm
Motor
Shimano Steps E8000, max output 70Nm (250W)
Shifter
Shimano XT Di2
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Chain
KMC X11
Frameset
Frame
Aluminum
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss Spline HX1501 wheelset, 35mm inner width
Tires
Maxxis DHR II, 27.5 x 2.8", folding, 3C, EXO, TR
Spokes
DT Swiss Spline HX1501 wheelset
Rear hub
DT Swiss Spline HX1501 wheelset, Centerlock, 110x15mm front, 148x12mm rear
Front hub
DT Swiss Spline HX1501 wheelset, Centerlock, 110x15mm front, 148x12mm rear

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
430,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
576,0
601,0
627,0
651,0
d
Head tube length
100,0
120,0
140,0
160,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
58,0
58,0
58,0
58,0
g
Trail
91,0
91,0
91,0
91,0
h
Wheelbase
1167,0
1195,0
1223,0
1251,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
601,0
619,0
637,0
656,0
l
Reach
413,0
433,0
453,0
473,0
m
Standover height
717,0
720,0
750,0
782,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
736,0
764,0
792,0
820,0
