Merida eONE-SIXTY 9000 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,03 kg
Front travel
160mm
Rear travel
150mm

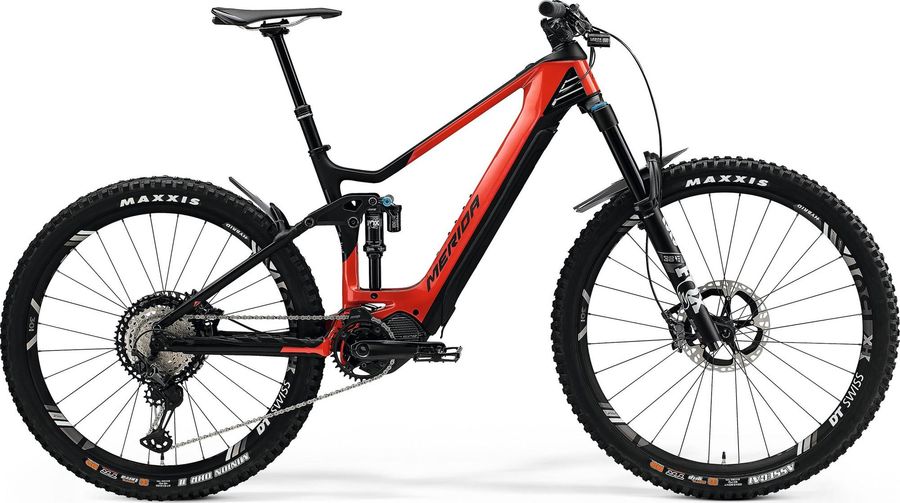

Merida eONE-SIXTY 9000 2021

About the Merida eONE-SIXTY 9000 2021

The Merida eONE-SIXTY 9000 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,03 kg.

Features

The Merida eONE-SIXTY 9000 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Shimano SC-EM800
Components
Steam
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes
Saddle
MERIDA EXPERT CC, V-mount
Battery
Shimano E8036 630Wh / E8035 504Wh XS
Headset
MERIDA-8152
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Discs
Shimano RT-MT900 / Shimano RT-EM910, 203 mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano CRE80-12-B, 34 teeth, Shimano FCEM900
Motor
Shimano EP8, 85Nm
Shifter
Shimano SL -MT800-IL / Shimano XT M8100 12
Bottom bracket
included
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Front suspension
Fox 38 Factory
Rear suspension
Fox Float DPX2
Wheels
Rims
DT Swiss Spline HX1501 ONE 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Assegai, 29x2.5 ", fold, TR DD 3C MaxxGrip
Rear hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Front hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key

Geometry

Size MD LG XL
a
Seat tube length
440,0
470,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
c
Top tube length
611,0
635,0
658,0
d
Head tube length
120,0
135,0
150,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
g
Trail
111,0
111,0
111,0
h
Wheelbase
1218,0
1244,5
1271,0
i
Chainstay length
445,5
445,5
445,5
j
Bottom bracket drop
17,5
17,5
17,5
k
Stack height
643,5
657,5
671,0
l
Reach
446,0
466,0
486,0
m
Standover height
739,0
746,0
760,0
x
Bottom bracket height
338,0
338,0
338,0
y
Front center
773,0
800,0
826,0
