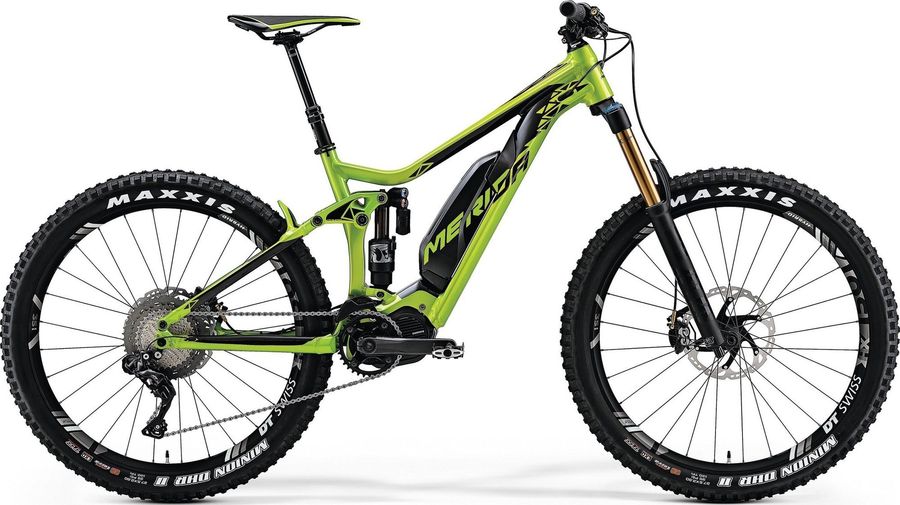

Merida eONE-SIXTY 900E 2018
The Merida eONE-SIXTY 900E 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,1 kg
Front travel
36mm
Rear travel
160mm
About the Merida eONE-SIXTY 900E 2018
The Merida eONE-SIXTY 900E 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 22,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
VP Components, VPE-537
|
|---|---|
|
Remote
|
Shimano SC-E8000
|
|
Steam
|
Merida Expert SS, 45mm length
|
|---|---|
|
Saddle
|
MERIDA EXPERT
|
|
Battery
|
Shimano E8010 500Wh
|
|
Headset
|
FSA NO.57/55E neck
|
|
Seatpost
|
Rock Shox Reverb Stealth 30.9mm
|
|
Handlebar
|
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
|
|
Brake lever
|
attached
|
|
Brakes
|
Shimano Saint BR-M820
438 (BL-M820) g
Hydraulic disc brake
4 piston
|
|
H03A Resin SM-RT86 |
|
|
Crankset
|
Shimano CRE80-B 34, SM-CDE 80 Chainguide
|
|---|---|
|
Motor
|
Shimano [E8000]
|
|
Shifter
|
Shift Switch XT Di2
|
|
Chain guide
|
Shimano SM-CDE 80
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Chain
|
KMC X11
|
|
Frame
|
eONE-SIXTY
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss HX1501 Spline one 35 boost wheelset
|
|---|---|
|
Tires
|
Maxxis DHR II 27.5" x 2.8"
|
|
Spokes
|
DT Swiss
|
|
Rear hub
|
DT Swiss HX 1501, Boost front and rear
|
|
Front hub
|
DT Swiss HX 1501, Boost front and rear
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
410,0
|
430,0
|
470,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
576,0
|
601,0
|
627,0
|
|
d
Head tube length
|
100,0
|
120,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
99,0
|
99,0
|
99,0
|
|
h
Wheelbase
|
1167,0
|
1195,0
|
1223,0
|
|
i
Chainstay length
|
432,5
|
432,5
|
432,5
|
|
j
Bottom bracket drop
|
12,5
|
12,5
|
12,5
|
|
k
Stack height
|
601,0
|
619,0
|
637,0
|
|
l
Reach
|
413,0
|
433,0
|
453,0
|
|
m
Standover height
|
717,0
|
720,0
|
750,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
735,0
|
763,0
|
791,0
|
