Merida eONE-SIXTY LIMITED-EDITION 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

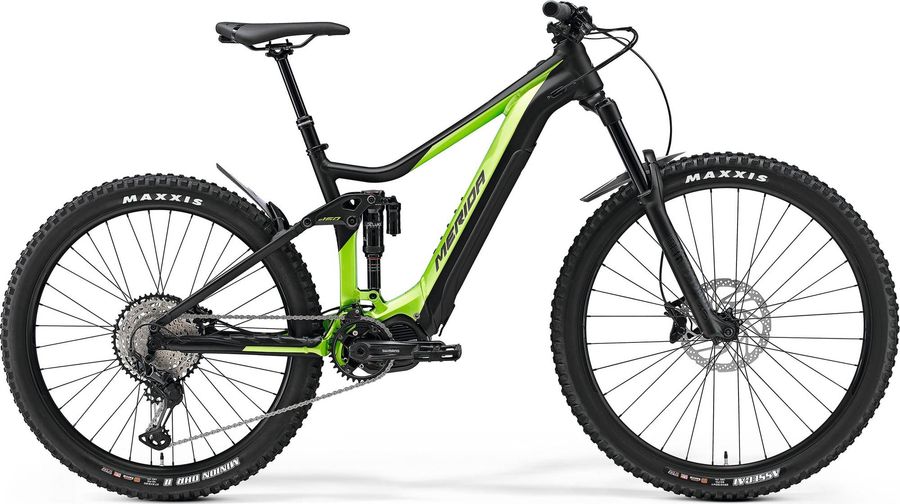

Merida eONE-SIXTY LIMITED-EDITION 2020

About the Merida eONE-SIXTY LIMITED-EDITION 2020

The Merida eONE-SIXTY LIMITED-EDITION 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes.

Features

The Merida eONE-SIXTY LIMITED-EDITION 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano SC-E7000
Components
Saddle
MERIDA COMP CC
Battery
Shimano E8035, 504Wh
Headset
Merida 1901
Seatpost
MERIDA COMP TR, 30.9mm diameter
Handlebar
MERIDA EXPERT eTR, material: aluminium
Discs
Shimano RT30 / Shimano RTEM300
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano CRE80-12-B, 34 teeth
Motor
Shimano E8000, 70Nm
Shifter
Shimano SLX 12
Bottom bracket
included
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
eONE-SIXTY LITE II, material: aluminium
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
MERIDA COMP TR, 29mm inner width
Tires
Maxxis Assegai / Maxxis DHR II
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size XS SM MD LG XL
a
Seat tube length
405,0
420,0
440,0
470,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
568,0
589,0
610,0
634,0
657,0
d
Head tube length
110,0
115,0
120,0
135,0
150,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
111,0
111,0
111,0
111,0
111,0
h
Wheelbase
1173,0
1195,0
1217,0
1243,5
1269,5
i
Chainstay length
444,5
444,5
444,5
444,5
444,5
j
Bottom bracket drop
17,5
17,5
17,5
17,5
17,5
k
Stack height
634,0
638,0
643,0
657,0
670,0
l
Reach
405,0
425,0
445,0
465,0
485,0
m
Standover height
742,0
741,0
739,0
760,0
782,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
338,0
y
Front center
729,0
751,0
773,0
800,0
826,0
