Merida eONE-TWENTY 600 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,22 kg
Front travel
130mm
Rear travel
120mm

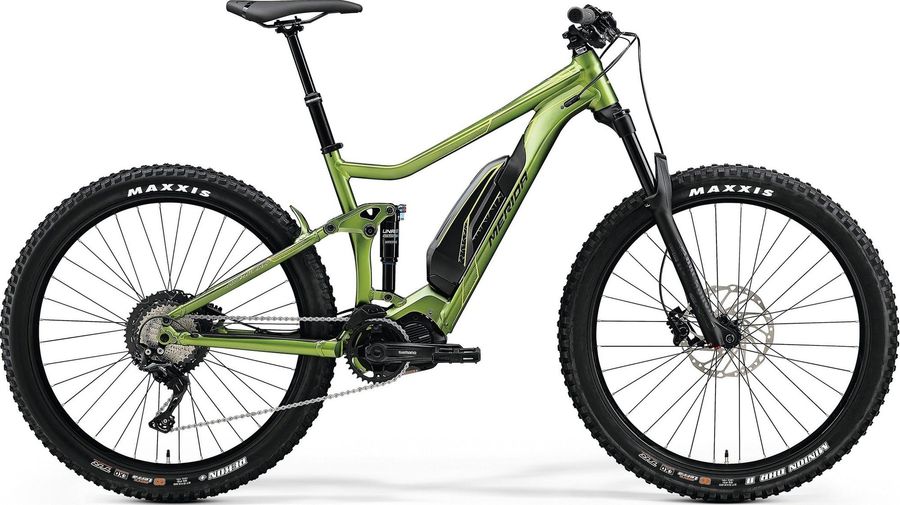

Merida eONE-TWENTY 600 2019

About the Merida eONE-TWENTY 600 2019

The Merida eONE-TWENTY 600 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 24,22 kg.

Features

The Merida eONE-TWENTY 600 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
VP VPE-537
Remote
Shimano SC-E7000
Components
Steam
Merida Expert eTR, 35mm diameter, 0° stem angle
Saddle
MERIDA Comp CC
Battery
Shimano E8010, 504 Wh
Headset
FSA NO.55EP neck, 2191017484
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0 SB, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Handlebar
MERIDA Expert eTR, 780mm width, 20mm rise
Brake lever
attached
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano CRE70-B, 34 teeth
Motor
Shimano E7000, 60Nm
Shifter
no / Shimano SLX 11
Front derailleur
no
Chain
KMC e11 Sport
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
eONE-TWENTY
Rear suspension
SR Suntour Unair LOR8
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
MERIDA Expert TP, 38mm inner width
Tires
Maxxis DHR II, 27.5x2.8 ", fold, 3C EXO TR / Maxxis Rekon, 27.5x2.8", fold, 3C EXO TR
Spokes
Black stainless
Rear hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
583,0
601,0
623,0
646,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1155,0
1174,0
1198,0
1221,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
420,0
435,0
455,0
475,0
m
Standover height
698,0
730,0
751,0
783,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
717,0
736,0
760,0
783,0
