Merida eONE-TWENTY 800 2017

E-Bike
MTB Trail
Groupset
Shimano XT
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,8 kg

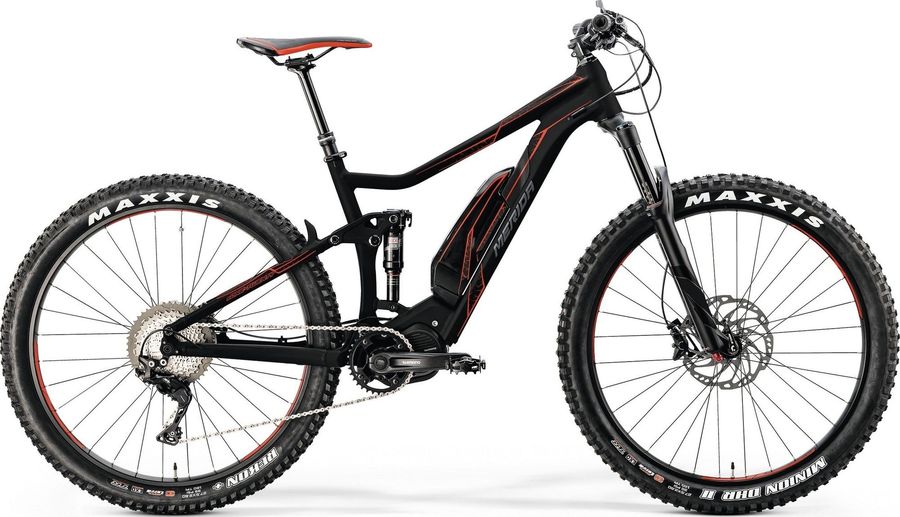

Merida eONE-TWENTY 800 2017

About the Merida eONE-TWENTY 800 2017

The Merida eONE-TWENTY 800 2017 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 21,8 kg.

Features

The Merida eONE-TWENTY 800 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano Cyclo display SC-E8000
Components
Saddle
MERIDA Sport 5
Battery
Shimano E8010 500Wh
Seatpost
MERIDA EXPERT Dropper 30.9
Handlebar
MERIDA EXPERT 35 760
Brake lever
attached
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Motor
Shimano DU-E8000
Shifter
Shimano SLX 11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
eONE-TWENTY (STePS)
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe RT3
Wheels
Rims
MERIDA Expert TP
Tires
Maxxis Rekon 27.5+ 2.8 fold / Maxxis DHR 2 27.5+ 2.8 fold
Spokes
Black stainless
Rear hub
Shimano Deore boost cen
Front hub
Shimano Deore boost cen

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
583,0
601,0
623,0
646,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1155,0
1174,0
1198,0
1221,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
420,0
435,0
455,0
475,0
m
Standover height
698,0
730,0
751,0
783,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
717,0
736,0
760,0
783,0
