Merida eONE-TWENTY 800 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,03 kg
Front travel
130mm
Rear travel
120mm

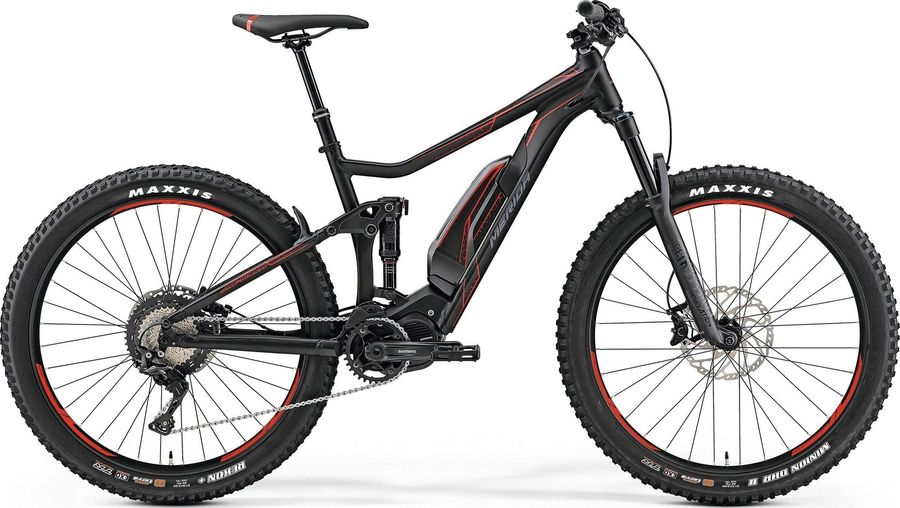

Merida eONE-TWENTY 800 2019

About the Merida eONE-TWENTY 800 2019

The Merida eONE-TWENTY 800 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,03 kg.

Features

The Merida eONE-TWENTY 800 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
VP VPE-537
Remote
Shimano SC-E8000
Components
Steam
Merida Expert eTR, 35mm diameter, 0° stem angle
Saddle
MERIDA Comp CC
Battery
Shimano E8010, 504 Wh
Headset
FSA NO.55EP neck, 2191017484
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0 SB, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Handlebar
MERIDA Expert eTR, 780mm width, 20mm rise
Brake lever
attached
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano CRE80-B, 34 teeth
Motor
Shimano E8000, 70Nm
Shifter
no / Shimano SLX 11
Front derailleur
no
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
eONE-TWENTY
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
MERIDA Expert TP, 38mm inner width
Tires
Maxxis DHR II, 27.5x2.8 ", fold, 3C EXO TR
Spokes
Black stainless
Rear hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock
Front hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
583,0
601,0
623,0
646,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1155,0
1174,0
1198,0
1221,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
420,0
435,0
455,0
475,0
m
Standover height
698,0
730,0
751,0
783,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
717,0
736,0
760,0
783,0
