BikeWise

Merida eONE-TWENTY 900E 2017

E-Bike
MTB Trail
Groupset
Shimano XT
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,5 kg

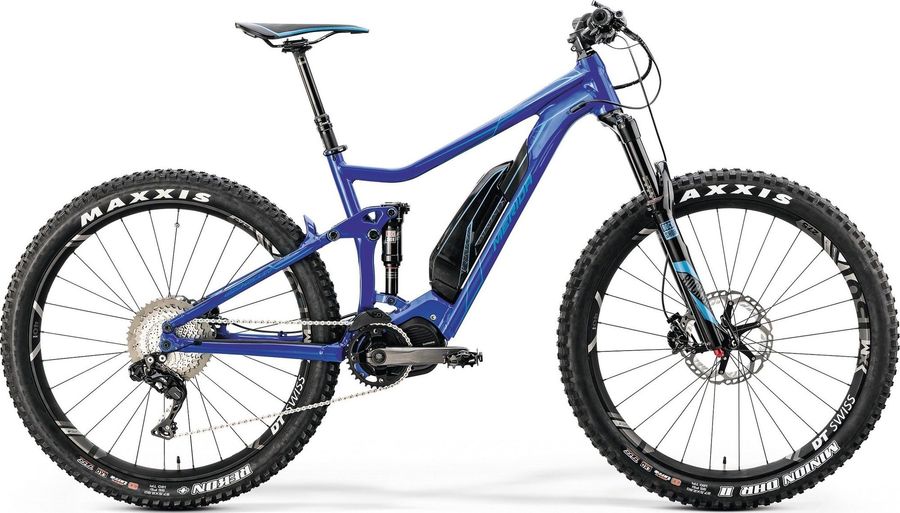

Merida eONE-TWENTY 900E 2017

About the Merida eONE-TWENTY 900E 2017

The Merida eONE-TWENTY 900E 2017 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 21,5 kg.

Features

The Merida eONE-TWENTY 900E 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Shimano Cyclo display SC-E8000
Components
Saddle
MERIDA Expert
Battery
Shimano E8010 500Wh
Seatpost
Rock Shox Reverb Stealth 30.9
Handlebar
MERIDA EXPERT 35 760
Brake lever
attached
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Motor
Shimano DU-E8000
Shifter
Shift Switch XT Di2
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
eONE-TWENTY (STePS)
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe RT3
Wheels
Rims
DT Swiss XM1501 Spline one 40 boost TC
Tires
Maxxis Rekon 27.5+ 2.8 fold / Maxxis DHR 2 27.5+ 2.8 fold
Spokes
attached
Rear hub
attached
Front hub
attached

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
583,0
601,0
623,0
646,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1155,0
1174,0
1198,0
1221,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
420,0
435,0
455,0
475,0
m
Standover height
698,0
730,0
751,0
783,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
717,0
736,0
760,0
783,0
