Merida eONE-TWENTY 900E 2018

E-Bike
MTB Trail
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,4 kg
Front travel
130mm
Rear travel
120mm

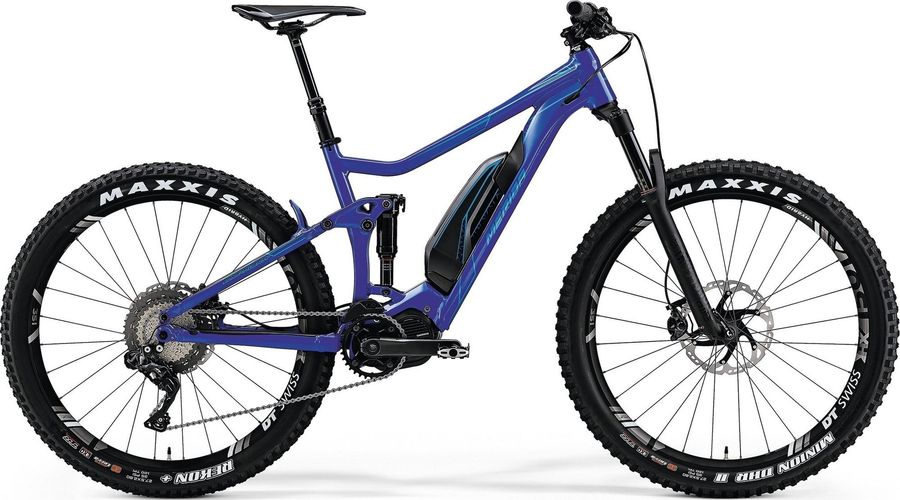

Merida eONE-TWENTY 900E 2018

About the Merida eONE-TWENTY 900E 2018

The Merida eONE-TWENTY 900E 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 21,4 kg.

Features

The Merida eONE-TWENTY 900E 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP Components, VPE-537
Remote
Shimano SC-E8000
Components
Steam
Merida Expert SS, 55mm length
Saddle
MERIDA EXPERT
Battery
Shimano E8010 500Wh
Headset
FSA NO.55EP neck
Seatpost
Rock Shox Reverb Stealth 30.9mm
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Brake lever
attached
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Motor
Shimano [E8000]
Shifter
Shift Switch XT Di2
Chain guide
Shimano SM-CDE 80
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Chain
KMC X11
Frameset
Frame
eONE-TWENTY
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
DT Swiss HX1501 Spline one 35 boost wheelset
Tires
Maxxis DHR 27.5"+ 2.8" folding / Maxxis Rekon 27.5"+ 2.8" folding
Spokes
DT Swiss
Rear hub
DT Swiss HX 1501, Boost front and rear
Front hub
DT Swiss HX 1501, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
583,0
601,0
623,0
646,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1155,0
1174,0
1198,0
1221,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
27,5
27,5
27,5
27,5
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
420,0
435,0
455,0
475,0
m
Standover height
698,0
730,0
751,0
783,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
717,0
736,0
760,0
783,0
