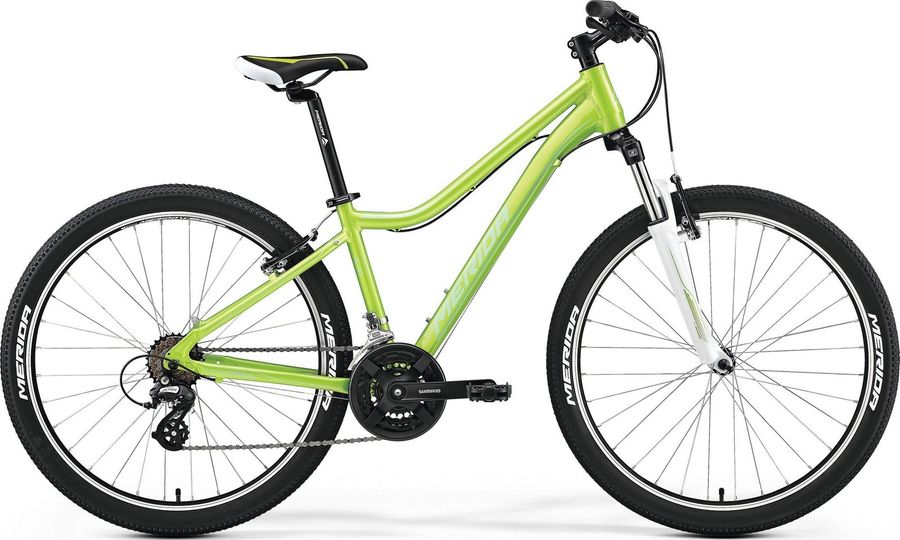

Merida JULIET 6. 10-V 2017
The Merida JULIET 6. 10-V 2017 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Altus
Wheel size
26"
Suspension type
Hardtail
Weight
14,2 kg
About the Merida JULIET 6. 10-V 2017
The Merida JULIET 6. 10-V 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 21 gears (3x7). The bike weighs approximately 14,2 kg.
Specifications
|
Brakes
|
V-Brake Linear
|
|---|---|
|
Saddle
|
Juliet Sport
|
|
Headset
|
EGG steel-B
|
|
Seatpost
|
MERIDA speed 27.2
|
|
Handlebar
|
MERIDA Steel 620 R30
|
|
Brake lever
|
Shimano EZ fire
|
|
Chain
|
chain 7s
|
|---|---|
|
Crankset
|
Shimano TY301 42-34-24 CG
|
|
Shifter
|
Shimano EF41 fire / Shimano EF41 fire 7
|
|
Front derailleur
|
Shimano TY 7s 42
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Cassette
|
Shimano MF-TZ21
|
|
Frame
|
JULIET SPEED 6.
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MERIDA Juliet V
|
|---|---|
|
Tires
|
MERIDA 26 1.95
|
|
Spokes
|
ucp steel
|
|
Rear hub
|
OV alloy
|
|
Front hub
|
OV alloy
|
Geometry
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
508,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
534,0
|
544,0
|
554,0
|
564,0
|
574,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
145,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
70,0º
|
70,5º
|
|
f
Rake
|
39,0
|
39,0
|
38,0
|
38,0
|
44,0
|
|
g
Trail
|
87,0
|
87,0
|
84,0
|
84,0
|
75,0
|
|
h
Wheelbase
|
1022,0
|
1032,0
|
1032,0
|
1042,0
|
1053,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
588,0
|
598,0
|
609,0
|
619,0
|
628,0
|
|
l
Reach
|
357,0
|
364,0
|
366,0
|
373,0
|
380,0
|
|
m
Standover height
|
638,0
|
670,0
|
723,0
|
753,0
|
782,0
|
|
x
Bottom bracket height
|
288,0
|
288,0
|
288,0
|
288,0
|
288,0
|
|
y
Front center
|
609,0
|
619,0
|
619,0
|
629,0
|
640,0
|
