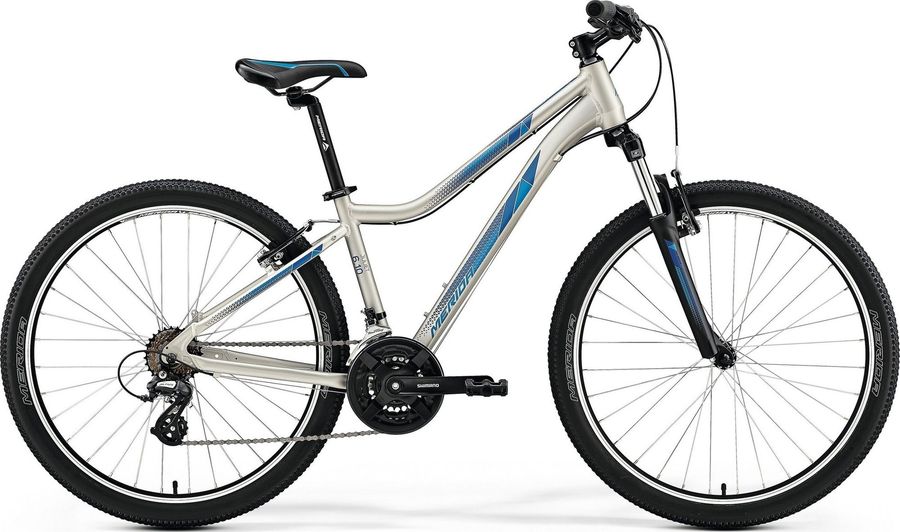

Merida JULIET 6. 10-V 2019
The Merida JULIET 6. 10-V 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Altus
Wheel size
26"
Suspension type
Hardtail
Weight
13,68 kg
Front travel
100mm
About the Merida JULIET 6. 10-V 2019
The Merida JULIET 6. 10-V 2019 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 21 gears (3x7). The bike weighs approximately 13,68 kg.
Specifications
|
Brakes
|
Promax MTV-117A
|
|---|---|
|
Saddle
|
MERIDA Juliet Sport
|
|
Headset
|
FSA NO.10P Neck15
|
|
Seatpost
|
MERIDA CC, 27.2mm diameter, 15mm setback
|
|
Handlebar
|
MERIDA CC, 620mm width, 30mm rise
|
|
Brake lever
|
Shimano ST-EF500
|
|
Crankset
|
Shimano TY301, 42-34-24 teeth
|
|---|---|
|
Shifter
|
Shimano ST-EF500
|
|
Front derailleur
|
Shimano FD-TY300
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ21
|
|
Frame
|
JULIET SPEED 6.
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MERIDA CC, 16mm inner width,
|
|---|---|
|
Tires
|
MERIDA K1047, 26x1.95", wire
|
|
Spokes
|
Steel UCP
|
|
Rear hub
|
Joytech JY-751DSE, 100x9mm width, 32 spoke holes / Joytech JY-752DSE, 135x9 WHF, 32 spoke holes
|
|
Front hub
|
Joytech JY-751DSE, 100x9mm width, 32 spoke holes / Joytech JY-752DSE, 135x9 WHF, 32 spoke holes
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
|
c
Top tube length
|
534,0
|
544,0
|
554,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
|
f
Rake
|
38,0
|
38,0
|
38,0
|
|
g
Trail
|
88,0
|
88,0
|
84,0
|
|
h
Wheelbase
|
1022,0
|
1032,0
|
1032,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
588,0
|
598,0
|
609,0
|
|
l
Reach
|
358,0
|
365,0
|
366,0
|
|
m
Standover height
|
583,0
|
615,0
|
668,0
|
|
x
Bottom bracket height
|
288,0
|
288,0
|
288,0
|
|
y
Front center
|
609,0
|
619,0
|
619,0
|
