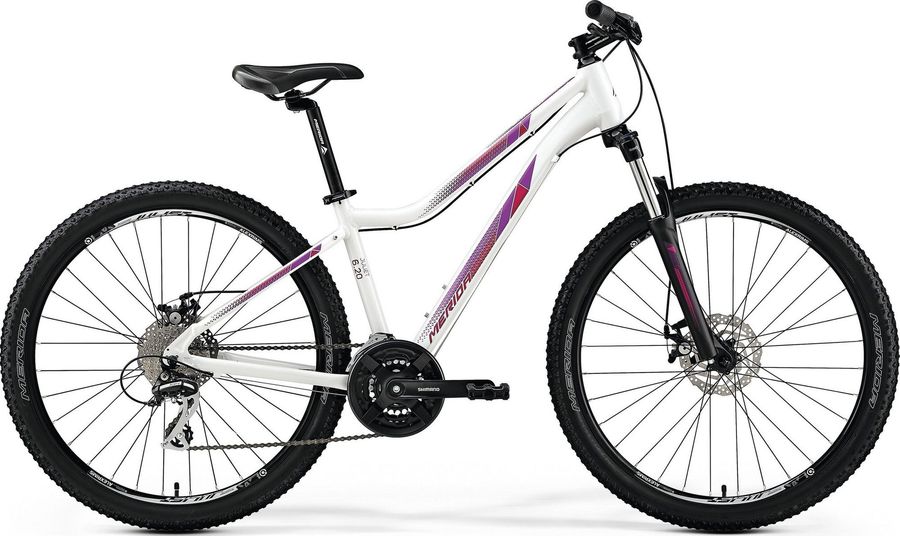

Merida JULIET 6. 20-MD 2019
The Merida JULIET 6. 20-MD 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Acera
Wheel size
26"
Suspension type
Hardtail
Weight
14,28 kg
Front travel
100mm
About the Merida JULIET 6. 20-MD 2019
The Merida JULIET 6. 20-MD 2019 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). The bike weighs approximately 14,28 kg.
Specifications
|
Saddle
|
MERIDA Juliet Sport
|
|---|---|
|
Headset
|
FSA NO.10P Neck15
|
|
Seatpost
|
MERIDA CC, 27.2mm diameter, 15mm setback
|
|
Handlebar
|
MERIDA CC, 640mm width, 25mm rise
|
|
Brake lever
|
Shimano ST-EF500
|
|
Brakes
|
Promax MTD-3.0
|
|
Chain
|
KMC M700
|
|---|---|
|
Crankset
|
Shimano TY301, 42-34-24 teeth
|
|
Shifter
|
Shimano ST-EF500
|
|
Front derailleur
|
Shimano FD-TY700
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
JULIET SPEED 6.
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MERIDA CC, 17mm inner width,
|
|---|---|
|
Tires
|
MERIDA K1080, 26x1.95", wire
|
|
Spokes
|
Black steel
|
|
Rear hub
|
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
|
|
Front hub
|
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
|
c
Top tube length
|
534,0
|
544,0
|
554,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
|
f
Rake
|
38,0
|
38,0
|
38,0
|
|
g
Trail
|
88,0
|
88,0
|
84,0
|
|
h
Wheelbase
|
1022,0
|
1032,0
|
1032,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
588,0
|
598,0
|
609,0
|
|
l
Reach
|
358,0
|
365,0
|
366,0
|
|
m
Standover height
|
583,0
|
615,0
|
668,0
|
|
x
Bottom bracket height
|
288,0
|
288,0
|
288,0
|
|
y
Front center
|
609,0
|
619,0
|
619,0
|
