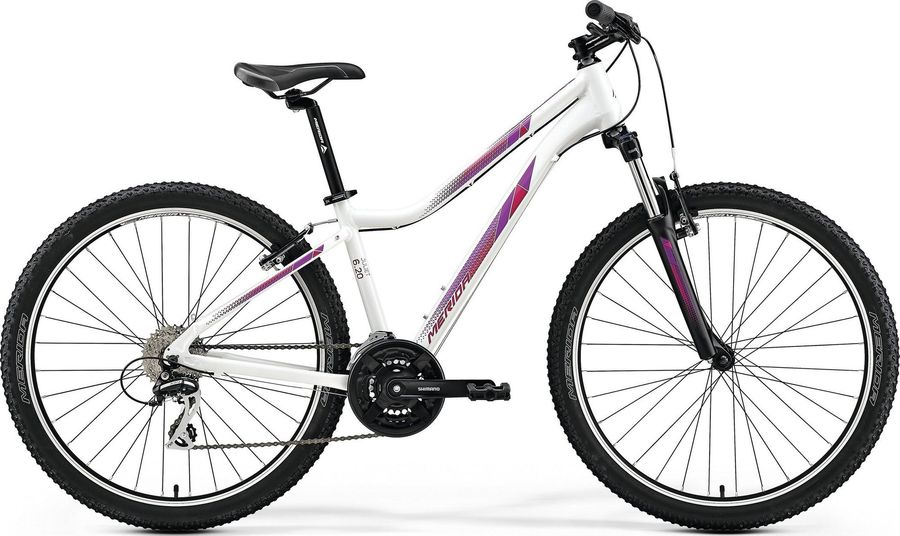

Merida JULIET 6. 20-V 2019
The Merida JULIET 6. 20-V 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Acera
Wheel size
26"
Suspension type
Hardtail
Weight
13,68 kg
Front travel
100mm
About the Merida JULIET 6. 20-V 2019
The Merida JULIET 6. 20-V 2019 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). The bike weighs approximately 13,68 kg.
Specifications
|
Brakes
|
Promax MTV-117A
|
|---|---|
|
Saddle
|
MERIDA Juliet Sport
|
|
Headset
|
FSA NO.10P Neck15
|
|
Seatpost
|
MERIDA CC, 27.2mm diameter, 15mm setback
|
|
Handlebar
|
MERIDA CC, 640mm width, 25mm rise
|
|
Brake lever
|
Shimano ST-EF500
|
|
Chain
|
KMC M700
|
|---|---|
|
Crankset
|
Shimano TY301, 42-34-24 teeth
|
|
Shifter
|
Shimano ST-EF500
|
|
Front derailleur
|
Shimano FD-TY700
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
JULIET SPEED 6.
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MERIDA CC, 16mm inner width,
|
|---|---|
|
Tires
|
MERIDA K1080, 26x1.95", wire
|
|
Spokes
|
Black steel
|
|
Rear hub
|
Joytech JY-751DSE, 100x9mm width, 32 spoke holes / Shimano FH-TX500, 135x9mm width, 32 spoke holes
|
|
Front hub
|
Joytech JY-751DSE, 100x9mm width, 32 spoke holes / Shimano FH-TX500, 135x9mm width, 32 spoke holes
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
|
c
Top tube length
|
534,0
|
544,0
|
554,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
|
f
Rake
|
38,0
|
38,0
|
38,0
|
|
g
Trail
|
88,0
|
88,0
|
84,0
|
|
h
Wheelbase
|
1022,0
|
1032,0
|
1032,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
588,0
|
598,0
|
609,0
|
|
l
Reach
|
358,0
|
365,0
|
366,0
|
|
m
Standover height
|
583,0
|
615,0
|
668,0
|
|
x
Bottom bracket height
|
288,0
|
288,0
|
288,0
|
|
y
Front center
|
609,0
|
619,0
|
619,0
|
