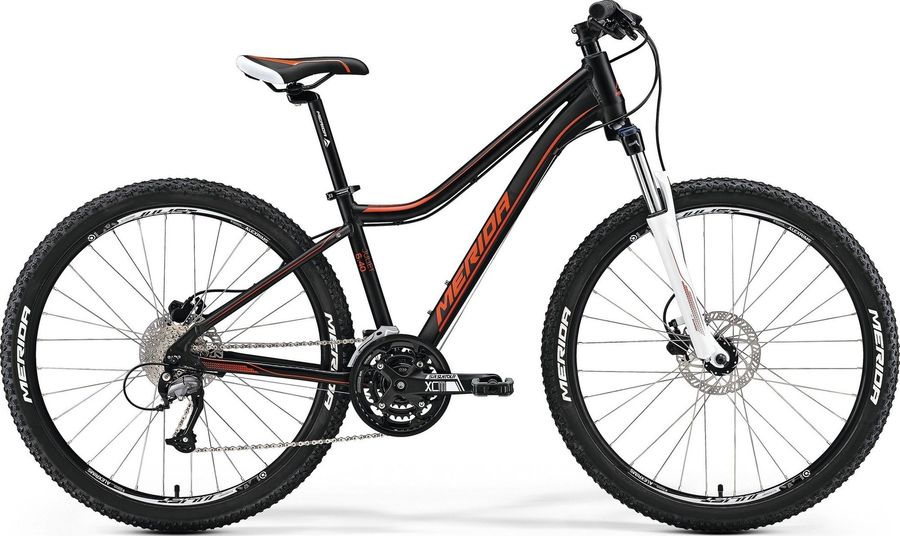

Merida JULIET 6. 40-D 2017
The Merida JULIET 6. 40-D 2017 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Altus
Wheel size
26"
Suspension type
Hardtail
Weight
14,5 kg
About the Merida JULIET 6. 40-D 2017
The Merida JULIET 6. 40-D 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 14,5 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
Juliet Sport
|
|---|---|
|
Headset
|
EGG steel-B
|
|
Seatpost
|
MERIDA speed 27.2
|
|
Handlebar
|
MERIDA Speed R30 620
|
|
Brake lever
|
Tektro M286
|
|
Brakes
|
Tektro MA
|
|
Chain
|
Chain 9S
|
|---|---|
|
Crankset
|
SR XCM 44-32-22 CG
|
|
Shifter
|
Shimano Altus rapidfire
|
|
Front derailleur
|
Shimano Altus
|
|
Cassette
|
Sunrace 9-speed
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
JULIET SPEED 6.
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MERIDA Juliet D
|
|---|---|
|
Tires
|
MERIDA 26 1.95
|
|
Spokes
|
stainless silver
|
|
Rear hub
|
Alloy Disc / Alloy Disc cassette
|
|
Front hub
|
Alloy Disc / Alloy Disc cassette
|
Geometry
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
508,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
534,0
|
544,0
|
554,0
|
564,0
|
574,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
145,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
70,0º
|
70,5º
|
|
f
Rake
|
39,0
|
39,0
|
38,0
|
38,0
|
44,0
|
|
g
Trail
|
87,0
|
87,0
|
84,0
|
84,0
|
75,0
|
|
h
Wheelbase
|
1022,0
|
1032,0
|
1032,0
|
1042,0
|
1053,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
588,0
|
598,0
|
609,0
|
619,0
|
628,0
|
|
l
Reach
|
357,0
|
364,0
|
366,0
|
373,0
|
380,0
|
|
m
Standover height
|
638,0
|
670,0
|
723,0
|
753,0
|
782,0
|
|
x
Bottom bracket height
|
288,0
|
288,0
|
288,0
|
288,0
|
288,0
|
|
y
Front center
|
609,0
|
619,0
|
619,0
|
629,0
|
640,0
|
