Merida JULIET 6. 40-V 2017

Women's Bike

MTB Cross Country

Groupset

Shimano Altus

Wheel size

26"

Suspension type

Hardtail

Weight

14 kg

About the Merida JULIET 6. 40-V 2017

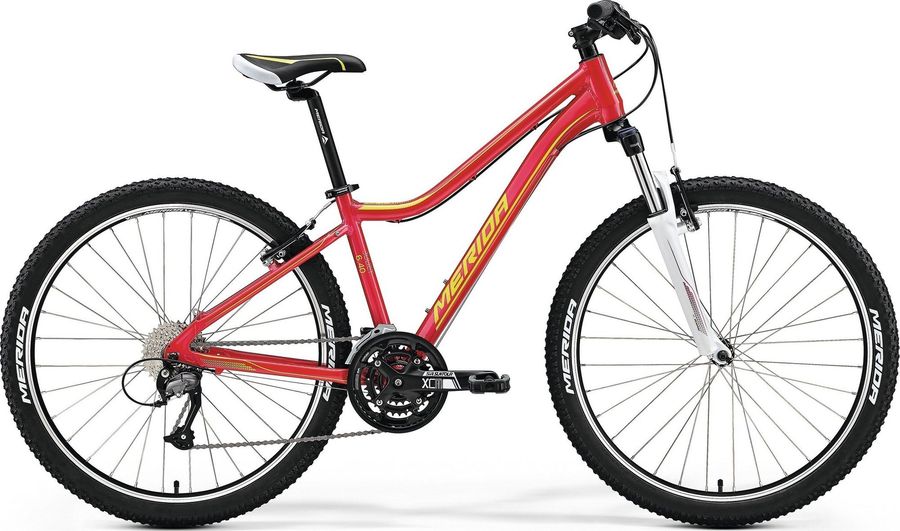

The Merida JULIET 6. 40-V 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). The bike weighs approximately 14 kg.

Specifications

Components
Brakes	V-Brake Linear
Saddle	Juliet Sport
Headset	EGG steel-B
Seatpost	MERIDA speed 27.2
Handlebar	MERIDA Speed R30 620
Brake lever	attached

Drivetrain
Chain	Chain 9S
Crankset	SR XCM 44-32-22 CG
Shifter	Shimano Altus ST rapidfire / Shimano Altus ST rapidfire 9
Front derailleur	Shimano M370
Cassette	Sunrace 9-speed
Rear derailleur	Shimano Altus RD-M2000 SGS 9s
B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M2000 P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T

Frameset
Frame	JULIET SPEED 6.
Front suspension	SR Suntour XCT

Wheels
Rims	MERIDA Juliet V
Tires	MERIDA 26 1.95
Spokes	stainless silver
Rear hub	OV alloy / OV Cassette
Front hub	OV alloy / OV Cassette

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Altus 3 × 9

Crank: 44-22T

Cassette: 11-32T

Speeds: 27s

Gearing

Average

0,69

Average

Compared to similar bikes, the Merida JULIET 6. 40-V 2017 has a good uphill performance and an excellent downhill performance.

Report incorrect information

Geometry

Size	13.5"	15"	17"	18.5"	20"
a Seat tube length	343,0	381,0	432,0	470,0	508,0
b Seat tube angle	73,5º	73,5º	73,0º	73,0º	73,0º
c Top tube length	534,0	544,0	554,0	564,0	574,0
d Head tube length	115,0	125,0	135,0	145,0	155,0
e Head tube angle	69,5º	69,5º	70,0º	70,0º	70,5º
f Rake	39,0	39,0	38,0	38,0	44,0
g Trail	87,0	87,0	84,0	84,0	75,0
h Wheelbase	1022,0	1032,0	1032,0	1042,0	1053,0
i Chainstay length	419,0	419,0	419,0	419,0	419,0
j Bottom bracket drop	55,0	55,0	55,0	55,0	55,0
k Stack height	588,0	598,0	609,0	619,0	628,0
l Reach	357,0	364,0	366,0	373,0	380,0
m Standover height	638,0	670,0	723,0	753,0	782,0
x Bottom bracket height	288,0	288,0	288,0	288,0	288,0
y Front center	609,0	619,0	619,0	629,0	640,0
