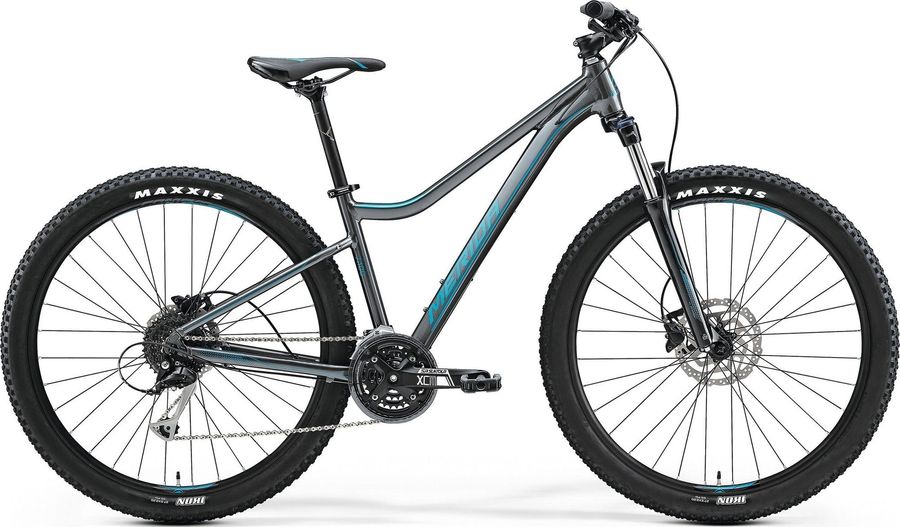

Merida JULIET 7. 100 2017
The Merida JULIET 7. 100 2017 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,83 kg
About the Merida JULIET 7. 100 2017
The Merida JULIET 7. 100 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,83 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
Juliet Sport V
|
|---|---|
|
Headset
|
EGG steel neck
|
|
Seatpost
|
MERIDA comp SB12 27.2
|
|
Handlebar
|
MERIDA comp OS 660 R25
|
|
Brake lever
|
Shimano M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
SR XCM 40-30-22 CG
|
|---|---|
|
Shifter
|
Shimano Altus rapidfire
|
|
Front derailleur
|
Shimano M3000
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC M99
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Frame
|
JULIET TFS
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
MERIDA Big 7 comp CC
|
|---|---|
|
Tires
|
Maxxis Ikon 27.5 2.2 fold
|
|
Spokes
|
Black stainless
|
|
Rear hub
|
Shimano Centerlock
|
|
Front hub
|
Shimano Centerlock
|
Geometry
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
508,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
544,0
|
554,0
|
569,0
|
579,0
|
589,0
|
|
d
Head tube length
|
95,0
|
100,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
38,0
|
39,0
|
39,0
|
39,0
|
40,0
|
|
g
Trail
|
92,0
|
91,0
|
88,0
|
88,0
|
87,0
|
|
h
Wheelbase
|
1045,0
|
1056,0
|
1066,0
|
1077,0
|
1088,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
63,0
|
63,0
|
63,0
|
63,0
|
63,0
|
|
k
Stack height
|
594,0
|
599,0
|
606,0
|
615,0
|
624,0
|
|
l
Reach
|
378,0
|
386,0
|
399,0
|
407,0
|
414,0
|
|
m
Standover height
|
597,0
|
629,0
|
680,0
|
709,0
|
738,0
|
|
x
Bottom bracket height
|
292,0
|
292,0
|
292,0
|
292,0
|
292,0
|
|
y
Front center
|
629,0
|
640,0
|
650,0
|
661,0
|
672,0
|
