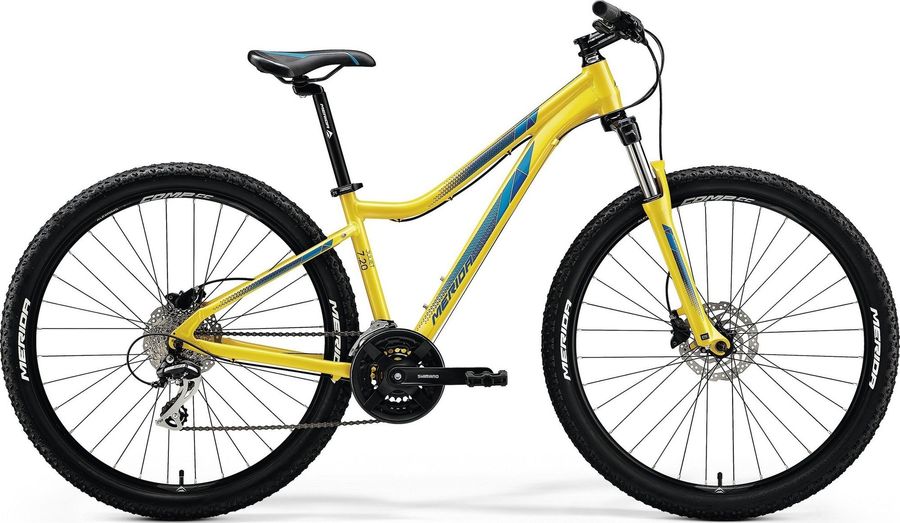

Merida JULIET 7. 20-D 2018
The Merida JULIET 7. 20-D 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,9 kg
Front travel
100mm
About the Merida JULIET 7. 20-D 2018
The Merida JULIET 7. 20-D 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 14,9 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
Female specific Juliet Sport
|
|---|---|
|
Headset
|
MERIDA 44 PSE
|
|
Seatpost
|
MERIDA Speed 27.2mm
|
|
Handlebar
|
MERIDA Speed Oversize clamp 640mm wide 15mm rise
|
|
Brake lever
|
Shimano EF505
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Chain
|
KMC M700
|
|---|---|
|
Crankset
|
Shimano TY301 42-34-24 with chainguard
|
|
Shifter
|
Shimano EF505 EZ fire, 24 speed
|
|
Front derailleur
|
Shimano Tourney / Acera-X, 24 speed
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Frame
|
JULIET SPEED 7.
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
MERIDA aluminium, 32 hole for disc brakes
|
|---|---|
|
Tires
|
MERIDA K1080 27.5 * 2.1" wire bead, 30tpi sidewall
|
|
Spokes
|
Black steel
|
|
Rear hub
|
Shimano TX505 32 hole quick release with centrelock
|
|
Front hub
|
Shimano TX505 32 hole quick release with centrelock
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
530,0
|
540,0
|
555,0
|
565,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
70,0º
|
70,0º
|
|
f
Rake
|
39,0
|
40,0
|
39,0
|
39,0
|
|
g
Trail
|
91,0
|
90,0
|
88,0
|
88,0
|
|
h
Wheelbase
|
1033,0
|
1044,0
|
1054,0
|
1065,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
596,0
|
601,0
|
612,0
|
622,0
|
|
l
Reach
|
366,0
|
374,0
|
386,0
|
393,0
|
|
m
Standover height
|
576,0
|
606,0
|
658,0
|
688,0
|
|
x
Bottom bracket height
|
290,0
|
290,0
|
290,0
|
290,0
|
|
y
Front center
|
617,0
|
628,0
|
638,0
|
649,0
|
