Merida JULIET 7. 300 2018

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,91 kg
Front travel
100mm

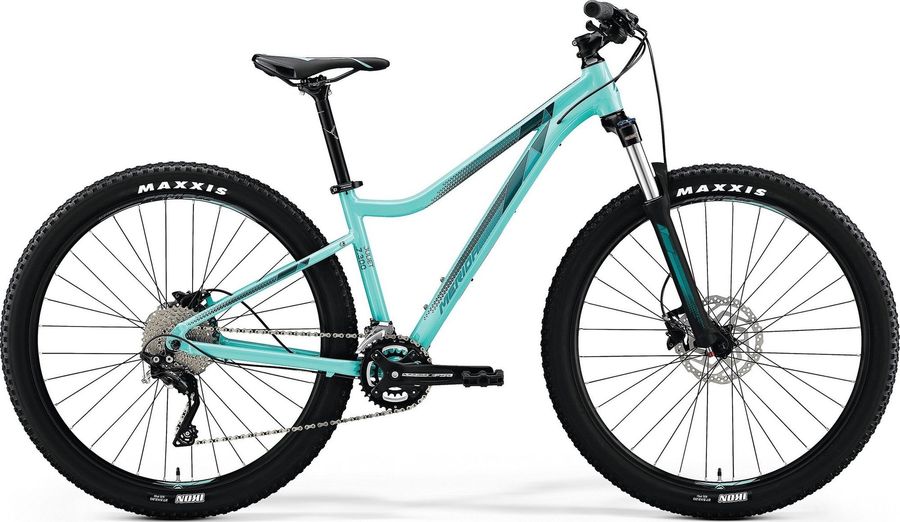

Merida JULIET 7. 300 2018

About the Merida JULIET 7. 300 2018

The Merida JULIET 7. 300 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes. The bike weighs approximately 12,91 kg.

Features

The Merida JULIET 7. 300 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Female specific Juliet Sport V
Headset
MERIDA M44PSE
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Handlebar
MERIDA Comp 660mm wide 25mm rise
Brake lever
Shimano M315
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Alfa drive 36 teeth
Shifter
Shimano Deore 20 speed rapid fire shifters
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
JULIET TFS
Front suspension
SR Suntour XCR
Wheels
Rims
MERIDA Big 7 Comp CC
Tires
Maxxis Ikon 27.5" x 2.2" folding
Spokes
Black stainless
Rear hub
Shimano Centerlock quick release
Front hub
Shimano Centerlock quick release

Geometry

Size XS SM MD LG
a
Seat tube length
343,0
381,0
432,0
470,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
544,0
554,0
569,0
579,0
d
Head tube length
95,0
100,0
105,0
115,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
f
Rake
38,0
39,0
39,0
39,0
g
Trail
92,0
91,0
88,0
88,0
h
Wheelbase
1045,0
1056,0
1066,0
1077,0
i
Chainstay length
424,0
424,0
424,0
424,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
594,0
599,0
606,0
615,0
l
Reach
378,0
386,0
399,0
407,0
m
Standover height
597,0
629,0
680,0
709,0
x
Bottom bracket height
292,0
292,0
292,0
292,0
y
Front center
629,0
640,0
650,0
661,0
