Merida JULIET 7. XT-EDITION 2017

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,27 kg
Front travel
100mm

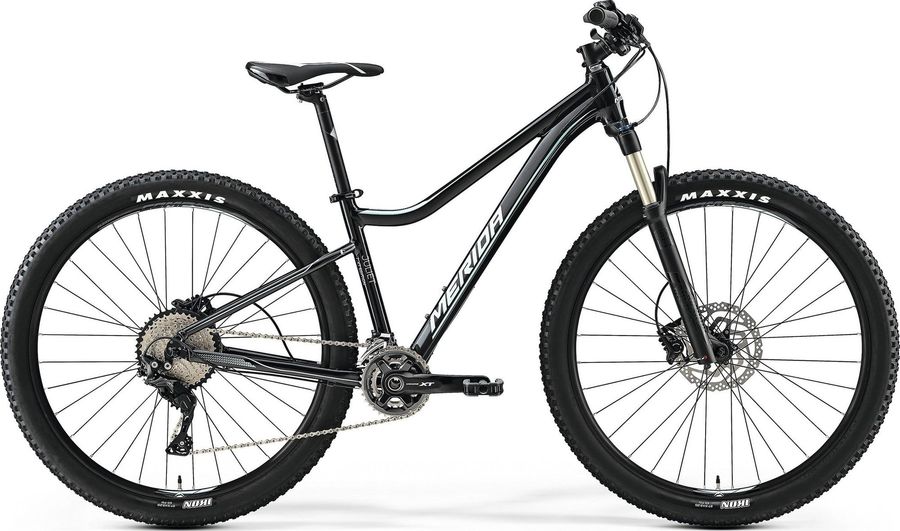

Merida JULIET 7. XT-EDITION 2017

About the Merida JULIET 7. XT-EDITION 2017

The Merida JULIET 7. XT-EDITION 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 12,27 kg.

Features

The Merida JULIET 7. XT-EDITION 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Juliet Sport V
Headset
EGG steel neck
Seatpost
MERIDA Expert SB15 27.2
Handlebar
MERIDA Expert OS 660 R12 lady
Brake lever
Shimano M506
Brakes
Shimano BR-M447
Drivetrain
Crankset
Shimano XT 34-24
Shifter
Shimano XT-i / Shimano XT-i-11
Front derailleur
Shimano XT HD double
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
JULIET TFS
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
MERIDA Big 7 comp CC
Tires
Maxxis Ikon 27.5 2.2 fold
Spokes
Black stainless
Rear hub
Shimano M4050 cen
Front hub
Shimano M4050 cen

Geometry

Size 13.5" 15" 17" 18.5" 20"
a
Seat tube length
343,0
381,0
432,0
470,0
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
544,0
554,0
569,0
579,0
589,0
d
Head tube length
95,0
100,0
105,0
115,0
125,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
70,0º
f
Rake
38,0
39,0
39,0
39,0
40,0
g
Trail
92,0
91,0
88,0
88,0
87,0
h
Wheelbase
1045,0
1056,0
1066,0
1077,0
1088,0
i
Chainstay length
424,0
424,0
424,0
424,0
424,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
63,0
k
Stack height
594,0
599,0
606,0
615,0
624,0
l
Reach
378,0
386,0
399,0
407,0
414,0
m
Standover height
597,0
629,0
680,0
709,0
738,0
x
Bottom bracket height
292,0
292,0
292,0
292,0
292,0
y
Front center
629,0
640,0
650,0
661,0
672,0
