Merida JULIET 7. XT-EDITION 2019

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
11,58 kg
Front travel
100mm

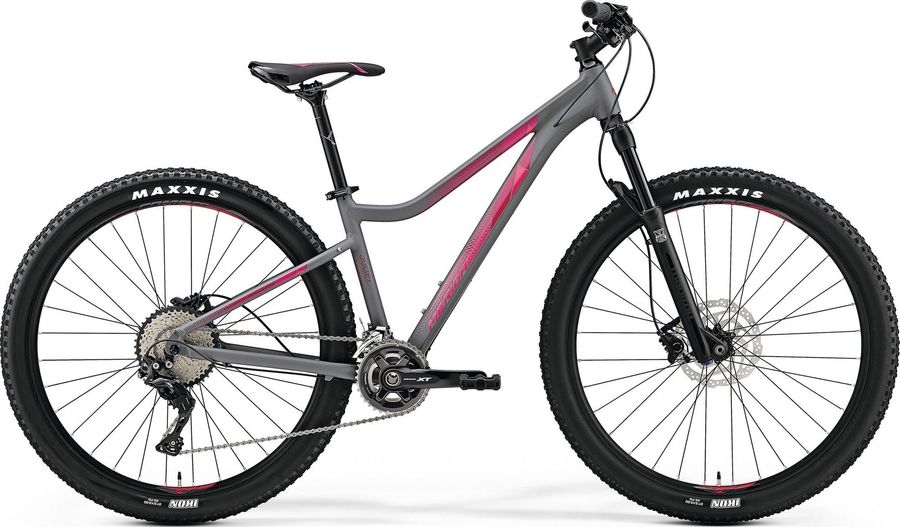

Merida JULIET 7. XT-EDITION 2019

About the Merida JULIET 7. XT-EDITION 2019

The Merida JULIET 7. XT-EDITION 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 11,58 kg.

Features

The Merida JULIET 7. XT-EDITION 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
MERIDA Juliet Sport V
Headset
MERIDA M44PSE neck, 2191026757
Seatpost
MERIDA Comp CC, 27.2mm diameter, 12mm setback
Handlebar
MERIDA Comp CC, 640mm width, 25mm rise
Brake lever
Shimano MT-501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano XT, 36-26 teeth
Shifter
Shimano XT
Front derailleur
Shimano XT
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
JULIET TFS
Front suspension
Manitou Machete
Wheels
Rims
MERIDA Comp CC, 20mm inner width
Tires
Maxxis Ikon, 27.5x2.2", fold
Spokes
Black stainless
Rear hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock
Front hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock

Geometry

Size XS SM MD LG
a
Seat tube length
343,0
381,0
432,0
470,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
544,0
554,0
569,0
579,0
d
Head tube length
95,0
100,0
105,0
115,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
f
Rake
38,0
39,0
39,0
39,0
g
Trail
92,0
91,0
88,0
88,0
h
Wheelbase
1045,0
1056,0
1066,0
1077,0
i
Chainstay length
424,0
424,0
424,0
424,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
594,0
599,0
606,0
615,0
l
Reach
378,0
386,0
399,0
407,0
m
Standover height
597,0
629,0
680,0
709,0
x
Bottom bracket height
292,0
292,0
292,0
292,0
y
Front center
629,0
640,0
650,0
661,0
