BikeWise

Merida NINETY-SIX 4000 2019

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,2 kg
Front travel
100mm
Rear travel
96mm

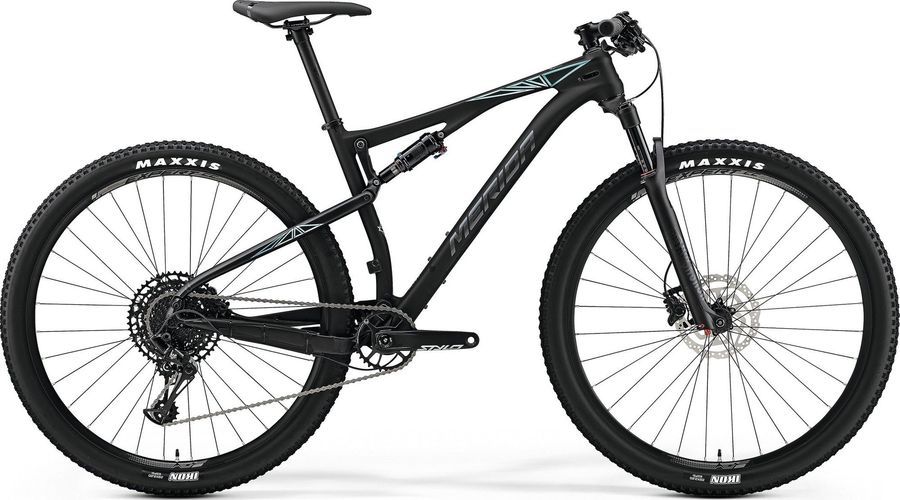

Merida NINETY-SIX 4000 2019

About the Merida NINETY-SIX 4000 2019

The Merida NINETY-SIX 4000 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,2 kg.

Features

The Merida NINETY-SIX 4000 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
None included
Components
Steam
Merida Expert CC, 31.8mm diameter, -6° stem angle
Saddle
MERIDA Comp CC
Headset
FSA NO.55E, 2191018117
Seatpost
MERIDA Expert CC, 30.9mm diameter, 0mm setback, Carbon
Handlebar
MERIDA Expert CC, 720mm width, flat
Brake lever
Shimano SLX
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Stylo 6K Eagle, 32 teeth
Shifter
no / SRAM NX Eagle
Bottom bracket
SRAM BB DUB press-fit MTB 92
Front derailleur
High direct mount (none included)
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
NINETY-SIX CFA
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
MERIDA Expert CC, 22.8mm inner width
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Double Butted Black stainless
Rear hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Front hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock

Geometry

Size MD LG XL
a
Seat tube length
460,0
510,0
560,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
582,0
607,0
632,0
d
Head tube length
100,0
115,0
130,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
52,0
g
Trail
82,0
82,0
81,0
h
Wheelbase
1110,0
1135,0
1160,0
i
Chainstay length
429,0
429,0
429,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
581,0
595,0
609,0
l
Reach
421,0
441,0
460,0
m
Standover height
760,0
765,0
768,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
684,0
709,0
734,0
