BikeWise

Merida NINETY-SIX 9. 3000 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,15 kg
Front travel
100mm
Rear travel
96mm

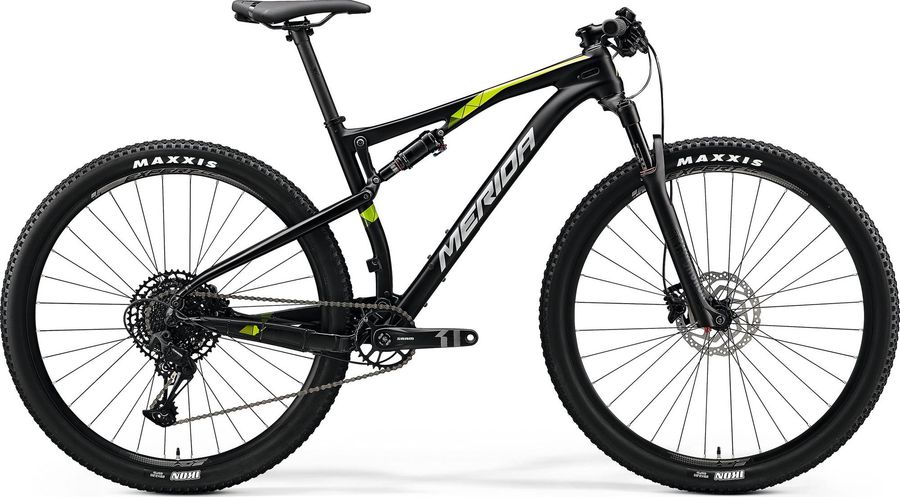

Merida NINETY-SIX 9. 3000 2020

About the Merida NINETY-SIX 9. 3000 2020

The Merida NINETY-SIX 9. 3000 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,15 kg.

Features

The Merida NINETY-SIX 9. 3000 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.55E
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM X1 1000 Eagle, 32 teeth, 175mm-M up
Shifter
SRAM SX Eagle
Bottom bracket
SRAM BB DUB PF MTB 92
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
NINETY-SIX CFA, 96mm suspension travel, material: carbon/aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Double Butted Black stainless
Rear hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size MD LG XL
a
Seat tube length
460,0
510,0
560,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
582,0
607,0
632,0
d
Head tube length
100,0
115,0
130,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
52,0
g
Trail
82,0
82,0
81,0
h
Wheelbase
1110,0
1135,0
1160,0
i
Chainstay length
429,0
429,0
429,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
581,0
595,0
609,0
l
Reach
421,0
441,0
460,0
m
Standover height
760,0
765,0
768,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
684,0
709,0
734,0
