Merida NINETY-SIX RC 9000 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,29 kg
Front travel
100mm
Rear travel
100mm

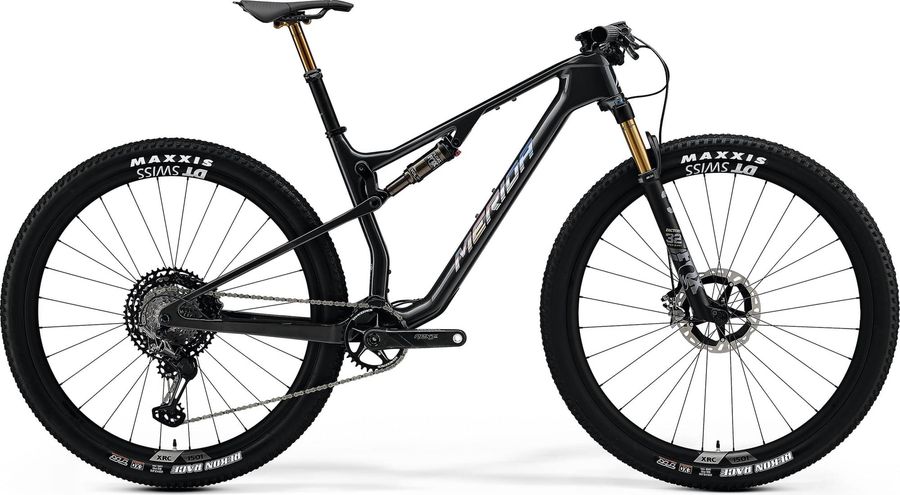

Merida NINETY-SIX RC 9000 2021

About the Merida NINETY-SIX RC 9000 2021

The Merida NINETY-SIX RC 9000 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 10,29 kg.

Features

The Merida NINETY-SIX RC 9000 2021 has 7 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
SCRATCH M5 PAS
Headset
MERIDA-8151 1-1/8"-1.5" cartridge bearing set
Seatpost
Fox Transfer, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M/L 150mm travel seatpost - XL 175mm travel seatpost
Handlebar
MERIDA TEAM CC, material: carbon, 740mm width, flat
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Race Face Next SL, 34 teeth, 175mm-M up
Shifter
Shimano SL -MT800-IL
Bottom bracket
BSA, 100mm, threaded
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
NINETY-SIX RC CF5 III, 100mm suspension travel, material: carbon, 29x2.3" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Rear suspension
Fox Float Factory
Front suspension
Fox 32 Float SC
Wheels
Rims
DT SWISS XRC 1501 SPLINE ONE, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, Shimano 12 Speed, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Rekon Race, 29x2.25", fold, TR EXO 120 TPI

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
470,0
500,0
b
Seat tube angle
76,5º
76,5º
76,0º
76,0º
c
Top tube length
576,0
596,0
619,0
643,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
43,0
44,0
g
Trail
100,0
100,0
101,0
100,0
h
Wheelbase
1126,0
1146,0
1169,0
1193,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
585,0
585,0
595,0
604,0
l
Reach
433,0
453,0
473,0
493,0
m
Standover height
730,0
731,0
736,0
738,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
695,0
715,0
738,0
762,0
