Merida NINETY-SIX TEAM 2018

MTB Cross Country
Groupset
SRAM XX1
Wheel size
29"
Suspension type
Full suspension
Weight
10 kg
Front travel
100mm

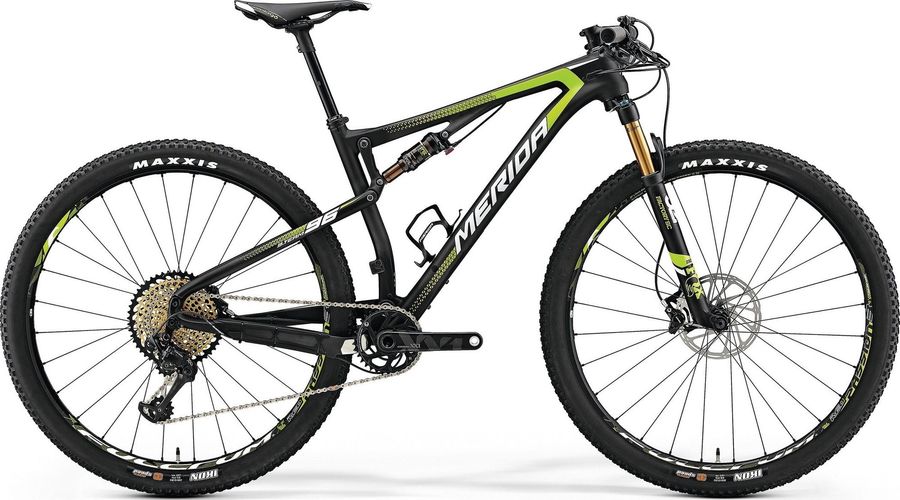

Merida NINETY-SIX TEAM 2018

About the Merida NINETY-SIX TEAM 2018

The Merida NINETY-SIX TEAM 2018 is a Full suspension Cross Country Mountain Bike. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout. The bike weighs approximately 10 kg.

Features

The Merida NINETY-SIX TEAM 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Prologo Scratch 2 Nack
Headset
FSA NO.55E
Seatpost
Kindshock Zeta 50mm dropper, 30.9mm
Handlebar
MERIDA Team CC 720mm wide flat
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 34 teeth
Shifter
SRAM XX1 Eagle 12 speed trigger with SRAM MMX clamp
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
NINETY-SIX CF5
Rear suspension
Fox Float Factory
Front suspension
Fox 32 Float Factory
Wheels
Rims
Fulcrum Red Passion 3 wheelset, Boost standard -15mm front and 12mm bolt through axles.
Tires
Maxxis Ikon Exception 2.2" 3C

Geometry

Size SM MD MD MD MD LG XL
a
Seat tube length
420,0
460,0
460,0
460,0
460,0
510,0
560,0
b
Seat tube angle
75,0º
75,0º
75,0º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
588,0
588,0
593,0
593,0
618,0
643,0
d
Head tube length
100,0
115,0
115,0
100,0
100,0
115,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
44,0
44,0
44,0
51,0
51,0
51,0
52,0
g
Trail
97,0
97,0
97,0
82,0
82,0
82,0
81,0
h
Wheelbase
1093,0
1118,0
1118,0
1121,0
1121,0
1146,0
1171,0
i
Chainstay length
430,0
430,0
430,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
21,0
21,0
21,0
40,0
40,0
40,0
40,0
k
Stack height
559,0
573,0
573,0
592,0
592,0
606,0
620,0
l
Reach
414,0
434,0
434,0
432,0
432,0
452,0
471,0
m
Standover height
753,0
755,0
755,0
771,0
771,0
776,0
779,0
x
Bottom bracket height
353,0
353,0
353,0
334,0
334,0
334,0
334,0
y
Front center
664,0
689,0
689,0
684,0
684,0
709,0
734,0
