BikeWise

Merida NINETY-SIX XT 2017

MTB Cross Country
Groupset
Shimano XT
Wheel size
29"
Suspension type
Full suspension
Weight
12,28 kg
Front travel
100mm

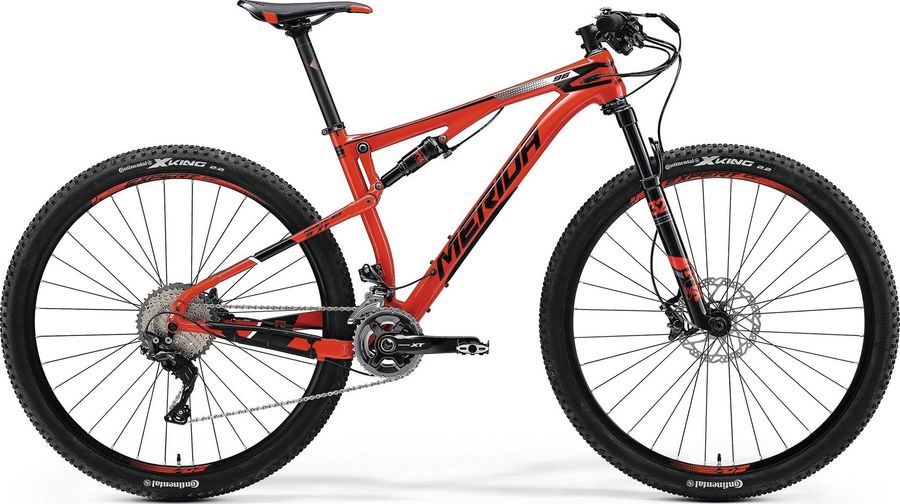

Merida NINETY-SIX XT 2017

About the Merida NINETY-SIX XT 2017

The Merida NINETY-SIX XT 2017 is a Full suspension Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 12,28 kg.

Features

The Merida NINETY-SIX XT 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Prologo Kappa 3
Headset
Big Conoid A-bearing
Seatpost
MERIDA carbon Expert SB0 31.6
Handlebar
MERIDA Expert OS 720 flat
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano: XT 36-26 boost
Shifter
Shimano XT / Shimano XT 11
Front derailleur
Shimano XT sideswing
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
NINETY-SIX CFA
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
MERIDA Expert CC
Tires
Continental X-King 2.2 fold
Spokes
Black stainless
Rear hub
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost
Front hub
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost

Geometry

Size SM MD MD MD MD LG XL
a
Seat tube length
420,0
460,0
460,0
460,0
460,0
510,0
560,0
b
Seat tube angle
75,0º
75,0º
75,0º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
588,0
588,0
593,0
593,0
618,0
643,0
d
Head tube length
100,0
115,0
115,0
100,0
100,0
115,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
44,0
44,0
44,0
51,0
51,0
51,0
51,0
g
Trail
97,0
97,0
97,0
82,0
82,0
82,0
82,0
h
Wheelbase
1101,0
1126,0
1126,0
1129,0
1129,0
1154,0
1179,0
i
Chainstay length
438,0
438,0
438,0
448,0
448,0
448,0
448,0
j
Bottom bracket drop
21,0
21,0
21,0
40,0
40,0
40,0
40,0
k
Stack height
559,0
573,0
573,0
592,0
592,0
606,0
620,0
l
Reach
414,0
434,0
434,0
432,0
432,0
452,0
471,0
m
Standover height
753,0
755,0
755,0
771,0
771,0
776,0
779,0
x
Bottom bracket height
353,0
353,0
353,0
334,0
334,0
334,0
334,0
y
Front center
664,0
689,0
689,0
684,0
684,0
709,0
734,0
