Merida ONE-FORTY 400 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,39 kg
Front travel
150mm
Rear travel
140mm

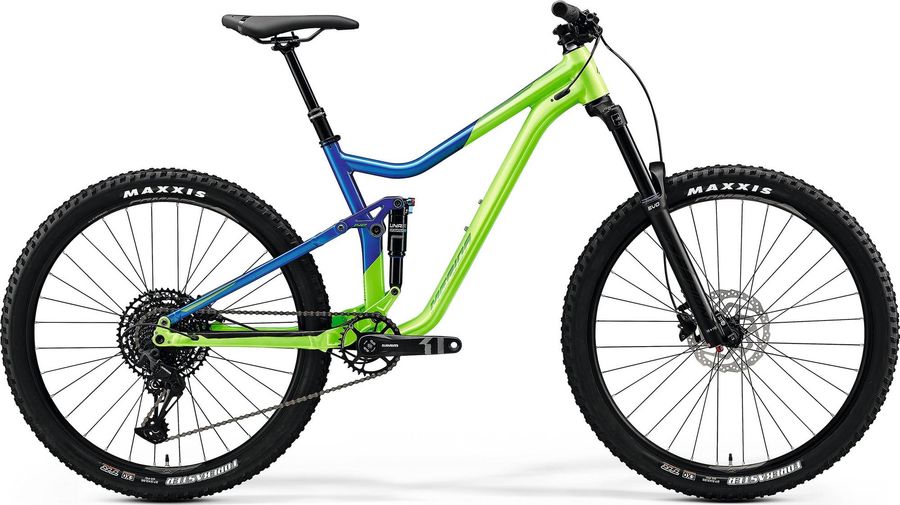

Merida ONE-FORTY 400 2020

About the Merida ONE-FORTY 400 2020

The Merida ONE-FORTY 400 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,39 kg.

Features

The Merida ONE-FORTY 400 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
MERIDA M2339 Neck
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost
Handlebar
MERIDA EXPERT CC, material: aluminium, 740mm width, 10mm rise
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM X1 1000 Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
SRAM SX Eagle
Bottom bracket
SRAM BB DUB PF MTB 92
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ONE-FORTY LITE, 140mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour Aion 35
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Forekaster, 27.5x2.35", fold, TR EXO Dual
Spokes
Black stainless
Rear hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
435,0
475,0
515,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
565,0
589,0
612,7
636,4
d
Head tube length
95,0
110,0
125,0
140,0
e
Head tube angle
66,3º
66,3º
66,3º
66,3º
f
Rake
42,0
42,0
40,0
42,0
g
Trail
110,0
110,0
112,0
110,0
h
Wheelbase
1137,0
1163,0
1187,0
1215,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
21,0
21,0
21,0
21,0
k
Stack height
580,0
594,1
607,9
621,6
l
Reach
408,0
428,0
448,0
468,0
m
Standover height
701,0
716,0
743,0
771,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
710,0
736,0
760,0
788,0
