BikeWise

Merida ONE-SIXTY 400 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,42 kg
Front travel
170mm
Rear travel
165mm

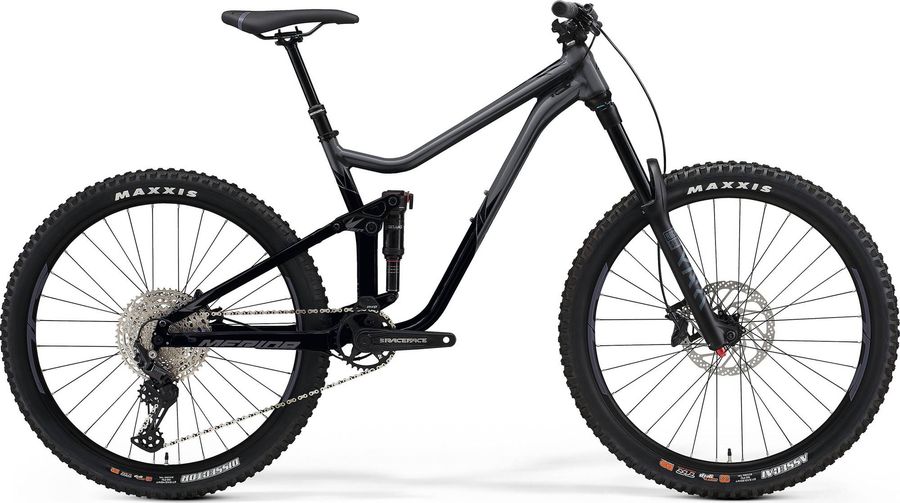

Merida ONE-SIXTY 400 2021

About the Merida ONE-SIXTY 400 2021

The Merida ONE-SIXTY 400 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,42 kg.

Features

The Merida ONE-SIXTY 400 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
MERIDA EXPERT TR, material: aluminium, 35mm diameter, 0° stem angle, 40 mm all sizes
Saddle
MERIDA COMP CC
Headset
FSA NO.57/55E neck
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost
Handlebar
MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise
Discs
Shimano RT30, 203mm, 180mm
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Race Face Ride, 32 teeth, 170 mm-S up
Shifter
Shimano SL -MT500-IL / Shimano Deore M5100
Bottom bracket
Race Face BB BB92– Ø24mm
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
ONE-SIXTY LITE, 165mm suspension travel, material: aluminium, 27.5x2.6" max. wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Assegai, 27.5x2.5", fold, TR DD 3C MaxxGrip
Rear hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
490,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
559,0
591,0
630,0
648,0
d
Head tube length
105,0
110,0
125,0
130,0
e
Head tube angle
65,3º
65,3º
65,3º
65,3º
f
Rake
42,0
42,0
36,0
42,0
g
Trail
117,0
117,0
124,0
117,0
h
Wheelbase
1157,0
1189,0
1223,0
1247,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
595,0
599,0
613,0
617,0
l
Reach
410,0
440,0
474,0
490,0
m
Standover height
713,0
734,0
757,0
765,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
727,0
759,0
793,0
817,0
