Merida ONE-SIXTY 5000 2018

MTB Enduro
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
170mm
Rear travel
160mm

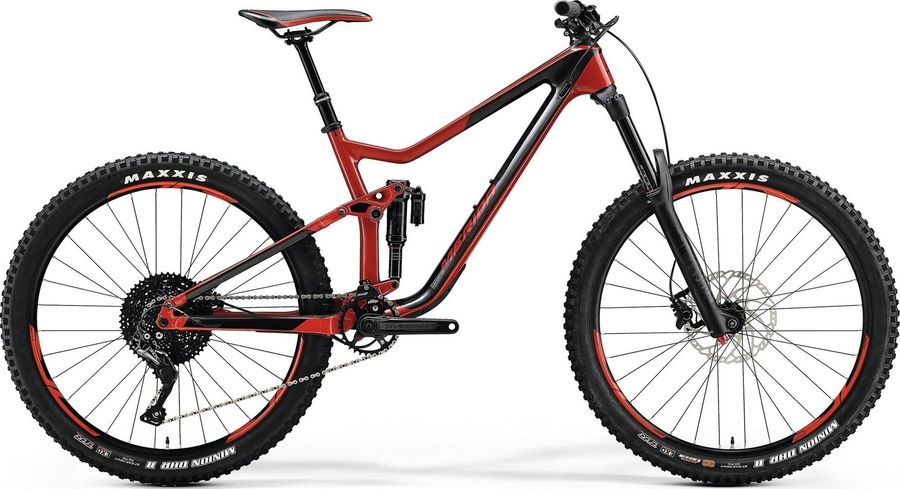

Merida ONE-SIXTY 5000 2018

About the Merida ONE-SIXTY 5000 2018

The Merida ONE-SIXTY 5000 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,3 kg.

Features

The Merida ONE-SIXTY 5000 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert TR, 3d forged 6061 aluminium, 35mm long, oversize clamp
Saddle
MERIDA Sport
Headset
FSA NO.57/55E
Seatpost
MERIDA Expert Dropper 30.9mm
Handlebar
MERIDA Expert TR double butted 6061 aluminium, 20mm rise, 760mm wide
Brake lever
Shimano M500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Affect 32 teeth with MRP 1x TR upper chainguard
Shifter
Shimano SLX rapid fire, 11 speed
Chain guide
MRP 1x, TR upper
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
ONE-SIXTY CFA
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA Expert TR, 29mm inner width tubeless ready
Tires
Maxxis Minion DHR II TR EXO 3C 2.4" front and Maxxis Minion DHR II TR EXO Dual 2.4" rear
Spokes
Double Butted Black stainless
Rear hub
Boost standard, Sealed bearing 15mm front and Shimano Deore centerlock 12mm rear bolt through axles.
Front hub
Boost standard, Sealed bearing 15mm front and Shimano Deore centerlock 12mm rear bolt through axles.

Geometry

Size SM MD LG
a
Seat tube length
400,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
563,0
597,0
632,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,3º
65,3º
65,3º
f
Rake
47,0
48,0
48,0
g
Trail
112,0
111,0
111,0
h
Wheelbase
1166,0
1201,0
1237,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
k
Stack height
592,0
601,0
614,0
l
Reach
415,0
445,0
475,0
m
Standover height
717,0
736,0
766,0
x
Bottom bracket height
349,0
349,0
349,0
y
Front center
736,0
771,0
807,0
