Merida ONE-SIXTY 700 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,81 kg
Front travel
170mm
Rear travel
165mm

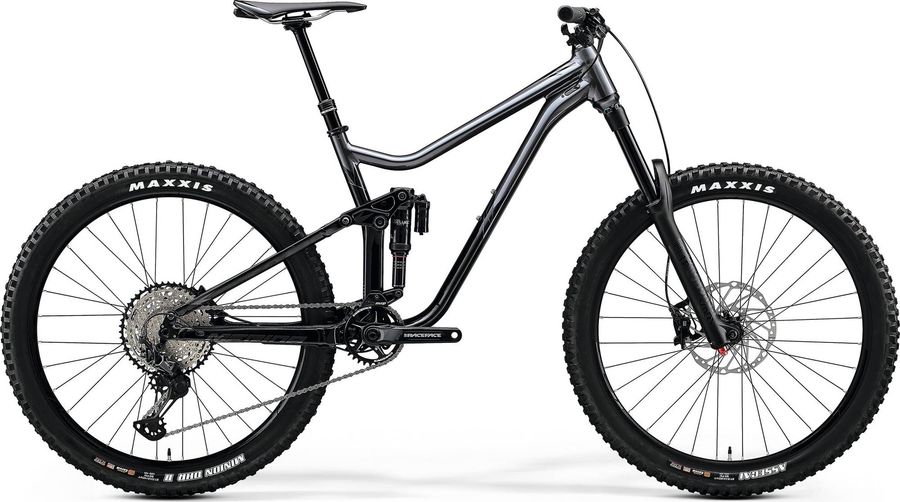

Merida ONE-SIXTY 700 2020

About the Merida ONE-SIXTY 700 2020

The Merida ONE-SIXTY 700 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,81 kg.

Features

The Merida ONE-SIXTY 700 2020 has 4 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA EXPERT CC
Headset
FSA NO.57/55E neck
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Handlebar
MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise
Discs
Shimano RT64
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Aeffect, 32 teeth, 170 mm-S up
Shifter
Shimano SL -MT800-IL / Shimano XT
Bottom bracket
BB, BB92– Ø30mm, Double Row,Ext. Seal
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
ONE-SIXTY LITE, 165mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Assegai / Maxxis Minion DHR II
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size MD LG XL
a
Seat tube length
430,0
470,0
490,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
587,0
626,0
644,0
d
Head tube length
110,0
125,0
130,0
e
Head tube angle
65,3º
65,3º
65,3º
f
Rake
42,0
36,0
42,0
g
Trail
117,0
124,0
117,0
h
Wheelbase
1185,0
1219,0
1243,0
i
Chainstay length
426,0
426,0
426,0
j
Bottom bracket drop
6,0
6,0
6,0
k
Stack height
595,0
609,0
613,0
l
Reach
436,0
470,0
486,0
m
Standover height
730,0
753,0
761,0
x
Bottom bracket height
349,0
349,0
349,0
y
Front center
759,0
793,0
817,0
