Groupset
Shimano XT
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,79 kg
Front travel
170mm

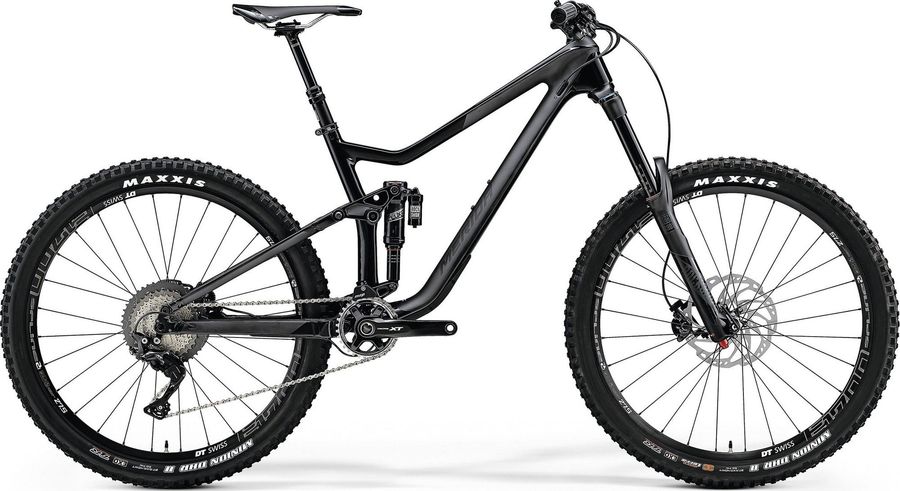

About the Merida ONE-SIXTY 7000 2017
The Merida ONE-SIXTY 7000 2017 is a Full suspension Enduro Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,79 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Saddle
|
Prologo Nago Evo X15
|
---|---|
Headset
|
Big Conoid A-bearing neck
|
Seatpost
|
Rock Shox Reverb Stealth 30.9
|
Handlebar
|
MERIDA EXPERT 35 760
|
Brake lever
|
Shimano XT
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
Crankset
|
Shimano XT 32 boost PF
|
---|---|
Shifter
|
Shimano XT-i
|
Rear derailleur
|
Shimano Deore XT RD-M8000-GS
271 g
GS
11s
|
46T(1x11-speed) |
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
Chain
|
KMC X11
|
Frame
|
ONE-SIXTY CFA
|
---|---|
Front suspension
|
RockShox Lyrik RC
DebonAir
|
|
|
Rear suspension
|
RockShox Super Deluxe RC3
|
Rims
|
DT Swiss E 1700 SPLINE TWO 25 Boost
|
---|---|
Tires
|
Maxxis Minion DHR II TR EXO 3C 2.4 / Minion DHR II TR EXO Dual 2.4
|
Spokes
|
attached
|
Rear hub
|
attached
|
Front hub
|
attached
|
Geometry
Size | SM | MD | LG |
---|---|---|---|
a
Seat tube length
|
400,0
|
430,0
|
470,0
|
b
Seat tube angle
|
68,5º
|
68,5º
|
68,5º
|
c
Top tube length
|
563,0
|
597,0
|
632,0
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
e
Head tube angle
|
65,3º
|
65,3º
|
65,3º
|
f
Rake
|
47,0
|
48,0
|
48,0
|
g
Trail
|
112,0
|
111,0
|
111,0
|
h
Wheelbase
|
1166,0
|
1201,0
|
1237,0
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
j
Bottom bracket drop
|
6,0
|
6,0
|
6,0
|
k
Stack height
|
592,0
|
601,0
|
614,0
|
l
Reach
|
415,0
|
445,0
|
475,0
|
m
Standover height
|
717,0
|
736,0
|
766,0
|
x
Bottom bracket height
|
349,0
|
349,0
|
349,0
|
y
Front center
|
736,0
|
771,0
|
807,0
|
